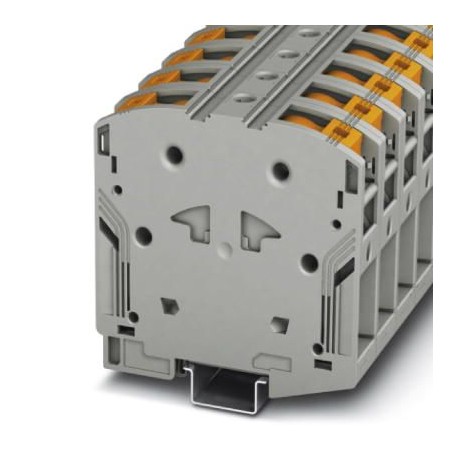

PTPOWER 95 P 3260163 PHOENIX CONTACT High-current terminal block

PTPOWER 95 P

3260163

PHOENIX CONTACT

3 Pcs.

High-current terminal block Power terminal block, with test socket, nominal voltage: 1000 V, nominal current: 232 A, number of connections: 2, number of poles: 1, connection type: PowerTurn connection, 1st floor, cross-section: 25 mm² - 95 mm², mounting class: NS 35/15, colour: grey

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3260163
Packing unit3 pc
Minimum order quantity3 pc
Catalog pagePage 129 (C-1-2017)
GTIN4046356805032
Weight per Piece (excluding packing)196.150 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of positions1
Number of levels1
Number of connections2
Potentials1
Nominal cross section95 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Area of applicationRailway industry
Machine building
Plant engineering
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition7.54 W
Maximum load current232 A (with 95 mm2conductor cross section)
Nominal current IN232 A
Nominal voltage UN1000 V AC
1500 V DC
Open side panelNo
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width25 mm
Length105.5 mm
Height NS 35/15108.7 mm

Connection data

Connection methodPower-Turn connection
Stripping length40 mm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.25 mm²
Conductor cross section solid max.95 mm²
Conductor cross section AWG min.4
Conductor cross section AWG max.4/0
Conductor cross section flexible min.25 mm²
Conductor cross section flexible max.95 mm²
Min. AWG conductor cross section, flexible4
Max. AWG conductor cross section, flexible4/0
Conductor cross section flexible, with ferrule without plastic sleeve min.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.95 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.95 mm²
Cross section with insertion bridge, solid max.95 mm²
Cross section with insertion bridge, stranded max.70 mm²

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3260163 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 25 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 25 mm²
Connectable conductor cross section solid-core (EF007337) 25 mm²
Rated current In (EF008250) 232 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 25 mm
Height (EF000040) 105.5 mm
Depth (EF000049) 108.7 mm
Closing plate required (EF002525) No
Colour (EF000007) Grey
Internally connected stages (EF002661) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
