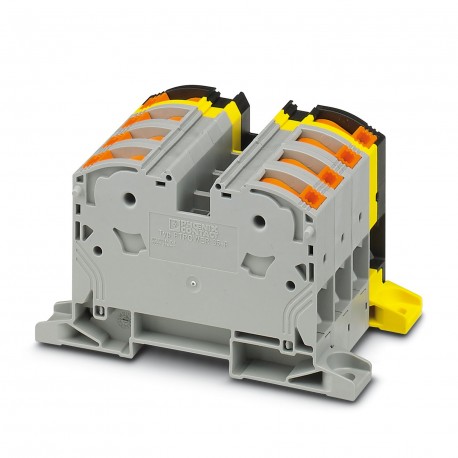

PTPOWER 35-3L/FE-F 3212075 PHOENIX CONTACT High-current terminal block

PTPOWER 35-3L/FE-F

3212075

PHOENIX CONTACT

2 Pcs.

High-current terminal block Current terminal, locked, rated voltage: 1000 V, rated current: 125 A, number of connections: 8, number of poles: 4, connection type: PowerTurn connection, Sizing cross-section: 35 mm², cross-section: 2.5 mm² - 35 mm², mounting type: direct screwed, color: gray/black-yellow High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 8, number of positions: 4, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: direct screw connection, color: gray/black-yellow

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeHigh current terminal block
Number of positions4
Pitch16 mm
Number of connections8
Number of rows1
Potentials4
Data management status
Article revision07
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage8 kV
Maximum power dissipation for nominal condition4.06 W
Connection data
Number of connections per level8
Nominal cross section35 mm²
Rated cross section AWG2
Stripping length25 mm
Conductor cross section rigid2.5 mm² ... 35 mm²
Cross section AWG12 ... 2 (converted acc. to IEC)
Conductor cross section flexible2.5 mm² ... 35 mm²
Conductor cross section, flexible [AWG]12 ... 2 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)2.5 mm² ... 35 mm²
Flexible conductor cross section (ferrule with plastic sleeve)2.5 mm² ... 35 mm²
Nominal current125 A
Maximum load current125 A (with 35 mm² conductor cross section)
Nominal voltage1000 V
Nominal cross section35 mm²
Connection cross sections directly pluggable
Conductor cross section rigid2.5 mm² ... 35 mm²
Conductor cross section, rigid [AWG]12 ... 2 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)2.5 mm² ... 35 mm²
Flexible conductor cross section (ferrule with plastic sleeve)2.5 mm² ... 35 mm²
Ex data
Rated data (ATEX/IECEx)
Identification II 2 GD  Ex eb IIC Gb
Operating temperature range-60 °C ... 110 °C
Ex-certified accessories1206612 SZF 3-1,0X5,5
1201662 E/AL-NS 35
List of bridgesPlug-in bridge / FBS 2-16 / 3005963
Bridge data89 A / 25 mm²
Ex temperature increase40 K (120 A/35 mm²)
Rated voltage690 V
for bridging with bridge690 V
Rated insulation voltage660 V
output(Permanent)
Ex level General
Rated current109 A
Maximum load current109 A
Contact resistance0.16 mΩ
Ex connection data General
Ferrule length25 mm
Stripping length25 mm
Nominal cross section35 mm²
Rated cross section AWG2
Connection capacity rigid2.5 mm² ... 35 mm²
Connection capacity AWG12 ... 2
Conductor cross section flexible, with ferrule without plastic sleeve min.6 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.35 mm²
Dimensions
Dimensional drawingdpognkoqpq.jpg
Width64 mm
Height120.2 mm
Depth68.3 mm
Drill hole spacing108 mm
Hole diameter5.5 mm
Pitch16 mm
Material specifications
Colormulticolored
gray (RAL 7042)
black (RAL 9005)
yellow (RAL 1018)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Mechanical properties
Mechanical data
Open side panelNo
Technical data
Drill hole spacing108 mm
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Mounting
Mounting typedirect screw connection

ETIM for 3212075 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 2.5 mm²
Connectable conductor cross section solid-core (EF007337) 2.5 mm²
Rated current In (EF008250) 125 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 8
Suitable for conductor material (EF012572) Aluminium/copper
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 64 mm
Height (EF000040) 120.2 mm
Depth (EF000049) 68.3 mm
Closing plate required (EF002525) No
Colour (EF000007) Multi colour
Internally connected stages (EF002661) Yes

Product Datasheet
