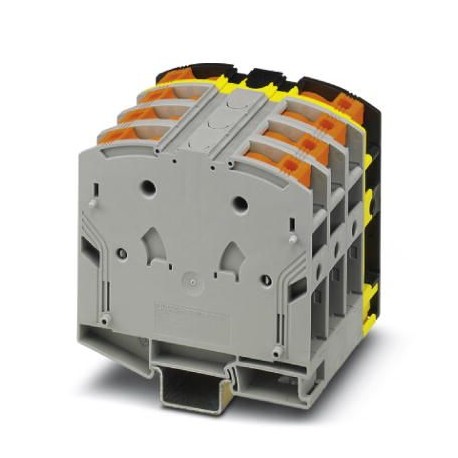

PTPOWER 50-3L/FE 3260055 PHOENIX CONTACT High-current terminal block

PTPOWER 50-3L/FE

3260055

PHOENIX CONTACT

3 Pcs.

High-current terminal block Power terminal, locked, rated voltage: 1000 V, rated current: 150 A, number of connections: 8, number of poles: 4, connection type: PowerTurn connection, 1st floor, cross-section: 10 mm² - 70 mm², mounting class: NS 35/15, color: gray/black-yellow

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3260055
Packing unit3 pc
Minimum order quantity3 pc
NoteMade to Order (non-returnable)
Catalog pagePage 127 (C-1-2017)
GTIN4046356998666
Weight per Piece (excluding packing)600.500 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of positions4
Number of levels1
Number of connections8
Potentials1
Nominal cross section50 mm²
Colorgray/black-yellow
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition4.73 W
Maximum load current150 A (with 50 mm² conductor cross section)
Nominal current IN150 A
Nominal voltage UN1000 V AC
1500 V DC
Open side panelNo
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width80 mm
Length101 mm
Height NS 35/15105 mm

Connection data

Connection methodPower-Turn connection
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.10 mm²
Conductor cross section solid max.70 mm²
Conductor cross section AWG min.8
Conductor cross section AWG max.2/0
Conductor cross section flexible min.10 mm²
Conductor cross section flexible max.70 mm²
Min. AWG conductor cross section, flexible8
Max. AWG conductor cross section, flexible2/0
Conductor cross section flexible, with ferrule without plastic sleeve min.10 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.50 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.10 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.50 mm²
Cross section with insertion bridge solid min.10 mm²
Cross section with insertion bridge, solid max.50 mm²
Cross section with insertion bridge stranded min.10 mm²
Cross section with insertion bridge, stranded max.50 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve min.10 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve max.50 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve min.10 mm²
Cross section with insertion bridge stranded, with ferrule with plastic sleeve max.50 mm²
Stripping length30 mm ... 32 mm
Internal cylindrical gageA10

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3260055 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 10 mm²
Connectable conductor cross section solid-core (EF007337) 10 mm²
Rated current In (EF008250) 150 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 8
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 80 mm
Height (EF000040) 101 mm
Depth (EF000049) 105 mm
Closing plate required (EF002525) No
Colour (EF000007) Multi colour
Internally connected stages (EF002661) Yes
