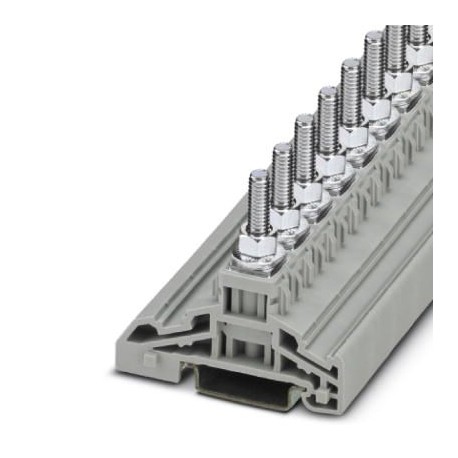

PHOENIX CONTACT HV M6/1 HV M6/1 3049204 PHOENIX CONTACT High Current Connectors View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HV M6/1 3049204 PHOENIX CONTACT High Current Connectors

HV M6/1

3049204

PHOENIX CONTACT

25 Pcs.

High Current Connectors Connector splicer, rated voltage: 1000 V, rated current: 125 A, number of connections: 1, connection type: Stud connection, Sizing cross-section: 35 mm², mounting class: NS 35/7.5, NS 35/15, color: gray

Automation > Feed-through terminal block
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3049204
Packing unit25 pc
Minimum order quantity25 pc
Catalog pagePage 552 (C-1-2017)
GTIN4046356184038
Weight per Piece (excluding packing)20.980 g
Custom tariff number85369010
Country of originCN (China)

General

Number of levels1
Number of connections1
Nominal cross section35 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition4.06 W
Connection in acc. with standardIEC 60947-7-1
Nominal current IN125 A
Maximum load current125 A
Nominal voltage UN1000 V
Open side panelNo
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Length67 mm
Width16 mm
Height55 mm
Height NS 35/7,558 mm
Height NS 35/1565.5 mm
Bolt length22.5 mm

Connection data

Connection methodBolt connection
Conductor cross section solid min.1.5 mm²
Conductor cross section solid max.35 mm²
Conductor cross section flexible min.2.5 mm²
Conductor cross section flexible max.35 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.35 mm²
Cable lug connection according to standardDIN 46234
Min. cross section for cable lug connection2.5 mm²
Max. cross section for cable lug connection35 mm²
Bolt length22.5 mm
Bolt diameter6 mm
Tightening torque, min3 Nm
Tightening torque max6 Nm
Cable lug connection according to standardDIN 46235
Min. cross section for cable lug connection6 mm²
Max. cross section for cable lug connection35 mm²
Bolt length22.5 mm
Bolt diameter6 mm
Tightening torque, min3 Nm
Tightening torque max6 Nm
Cable lug connection according to standardDIN 46237
Min. cross section for cable lug connection2.5 mm²
Max. cross section for cable lug connection6 mm²
Bolt length22.5 mm
Bolt diameter6 mm
Tightening torque, min3 Nm
Tightening torque max6 Nm
Screw threadM6
Tightening torque, min3 Nm
Tightening torque max6 Nm

Standards and Regulations

Connection in acc. with standardCSA
IEC 60947-7-1
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 3049204 Terminal blocks (EC000897)
Feature Name Feature Value
Rated current In (EF008250) 125 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Bolt connection
Type of electrical connection 2 (EF002527) Bolt connection
Number of clamp positions per level (EF002660) 1
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 16 mm
Height (EF000040) 64 mm
Depth (EF000049) 56.1 mm
Closing plate required (EF002525) No
Colour (EF000007) Grey
Internally connected stages (EF002661) Yes
