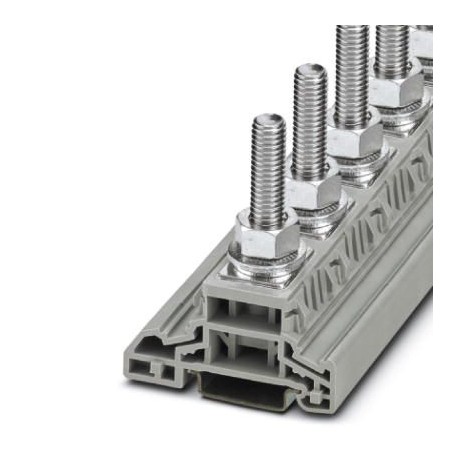

PHOENIX CONTACT HV M10/1 HV M10/1 3049408 PHOENIX CONTACT High Current Connectors View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HV M10/1 3049408 PHOENIX CONTACT High Current Connectors

HV M10/1

3049408

PHOENIX CONTACT

10 Pcs.

High Current Connectors Connector splicer, nominal voltage: 1000 V, nominal current: 269 A, number of connections: 1, connection type: Stud connection, Sizing cross-section: 120 mm², mounting class: NS 35/7.5, NS 35/15, color: gray

Automation > Feed-through terminal block
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3049408
Packing unit10 pc
Minimum order quantity10 pc
Catalog pagePage 553 (C-1-2017)
GTIN4046356184076
Weight per Piece (excluding packing)91.950 g
Custom tariff number85369010
Country of originDE (Germany)

General

Number of levels1
Number of connections1
Nominal cross section120 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition8.68 W
Connection in acc. with standardIEC 60947-7-1
Nominal current IN269 A
Maximum load current269 A
Nominal voltage UN1000 V
Open side panelNo
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Length67 mm
Width32 mm
Height73.5 mm
Height NS 35/7,576 mm
Height NS 35/1583.5 mm
Bolt length40.5 mm

Connection data

Connection methodBolt connection
Conductor cross section solid min.1.5 mm²
Conductor cross section solid max.120 mm²
Conductor cross section flexible min.6 mm²
Conductor cross section flexible max.120 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.6 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.120 mm²
Cable lug connection according to standardDIN 46234
Min. cross section for cable lug connection6 mm²
Max. cross section for cable lug connection120 mm²
Bolt length40.5 mm
Bolt diameter10 mm
Tightening torque, min10 Nm
Tightening torque max20 Nm
Cable lug connection according to standardDIN 46235
Min. cross section for cable lug connection10 mm²
Max. cross section for cable lug connection95 mm²
Bolt length40.5 mm
Bolt diameter10 mm
Tightening torque, min10 Nm
Tightening torque max20 Nm
Cable lug connection according to standardDIN 46237
Max. cross section for cable lug connection6 mm²
Bolt length40.5 mm
Bolt diameter10 mm
Tightening torque, min10 Nm
Tightening torque max20 Nm
Screw threadM10
Tightening torque, min10 Nm
Tightening torque max20 Nm

Standards and Regulations

Connection in acc. with standardCSA
IEC 60947-7-1
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 3049408 Terminal blocks (EC000897)
Feature Name Feature Value
Rated current In (EF008250) 269 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Bolt connection
Type of electrical connection 2 (EF002527) Bolt connection
Number of clamp positions per level (EF002660) 1
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 32 mm
Height (EF000040) 64 mm
Depth (EF000049) 74.6 mm
Closing plate required (EF002525) No
Colour (EF000007) Grey
Internally connected stages (EF002661) Yes
