View larger
Images are for illustrative purposes only. Please refer to data sheet for details

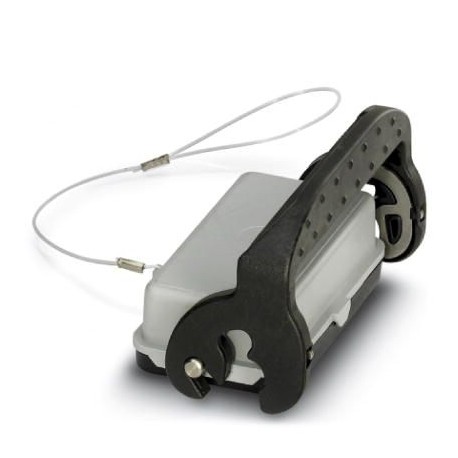

HC-B 10-SD-ML/FS 1678295 PHOENIX CONTACT Protective covers
HC-B 10-SD-ML/FS
1678295
PHOENIX CONTACT
10 Pcs.
Protective covers
B10 protective cap, with longitudinal flange, protective cap material: PA, height: 21.6 mm, seal: yes, retaining cord ring diameter: 30 mm, with lashing cord
Connectors > Cap for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1678295 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 654 (C-2-2017) |
| GTIN | 4017918151836 |
| Weight per Piece (excluding packing) | 48.800 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
General
| Size | B10 |
|---|---|
| Type | For sleeve housing without single locking latch |
| Material | PA |
| Seal material | NBR |
| Locking latch material | High-grade steel, handle: PA-GF |
| Flammability rating according to UL 94 | HB |
| Color | gray |
| Seal present | yes |
| Connection | Plastic protective cover for short-term protection |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
