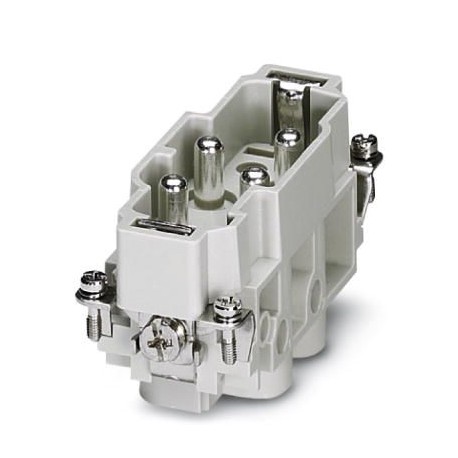

PHOENIX CONTACT HC-K 4/0-ESTS HC-K 4/0-ESTS 1679414 PHOENIX CONTACT Contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-K 4/0-ESTS 1679414 PHOENIX CONTACT Contact insert

HC-K 4/0-ESTS

1679414

PHOENIX CONTACT

1 Pcs.

Contact insert Contact insert, number of poles: 4+PE, size: B16, power contacts: 4, control contacts: 0, Male, Screw connection, 830 V, 80 A, 1.5 mm² ... 16 mm²

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1679414
Packing unit1 pc
Catalog pagePage 557 (C-2-2017)
GTIN4017918168858
Weight per Piece (excluding packing)115.800 g
Custom tariff number85366990
Country of originCN (China)

General

NoteFor HEAVYCON-ADVANCE housings of B16 type and HEAVYCON housings of B16 and B32 types
Connection methodScrew connection (power contacts)
Tightening torque3 Nm (4.0 mm² ... 16 mm²)
2 Nm (2.5 mm²)
1.2 Nm (1.5 mm²)
Screwdriver blade0.8 x 4.5 mm (power contacts)
0.5 x 3.5 mm (control contacts)
Degree of pollution3
Overvoltage categoryIII
Number of positions4+PE
No. of power contacts4
No. of control contacts0
Insertion/withdrawal cycles≥ 500
SizeB16
Contact numbering1 - 4
Conductor cross section1.5 mm² ... 16 mm²
Connection cross section AWG16 ... 6
Stripping length of the individual wire14 mm
Assembly instructionsTo ensure correct use, installation in housing with IP54 protection or better is required
ConnectionUse wire end protection (screw connections do not have wire protection)

Ambient conditions

Ambient temperature (operation)-40 °C ... 125 °C

Material data

Contact materialCu alloy
Contact surface materialAg
Material of contact surface, power contactAg
Contact carrier materialPC

Electrical characteristics

Rated voltage (III/3)830 V (power contacts)
Rated surge voltage8 kV (power contacts)
Rated current80 A (power contacts)

Standards and Regulations

Connection in acc. with standardCSA
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1679414 Connectors (EC000438)
Feature Name Feature Value
Number of power contacts (EF012216) 4
Number of control contacts (EF012217) 0
Contact insert without contacts (EF007324) No
Contact type (EF001587) Pin
Number of poles (EF001391) 4
Diameter plug-in contact (EF007320) 6 mm
Material connector insert (EF007545) Thermoplastic
Rated current In (EF008250) 80 A
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 830 V
Rated surge voltage (EF002993) 8 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 3
Type of electric connection (EF003961) Screw connection
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 1.5 mm²
Connectable conductor cross section multi-wired (EF007343) 1.5 mm²
Material of contact surface (EF004020) Other
Material of contact insert (EF008521) Thermoplastic
Material contact (EF007544) Other copper alloys
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) Yes
Min. number of insertion cycles (EF012212) 500
Width (EF000008) 34 mm
Height (EF000040) 42 mm
Depth (EF000049) 84.5 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
