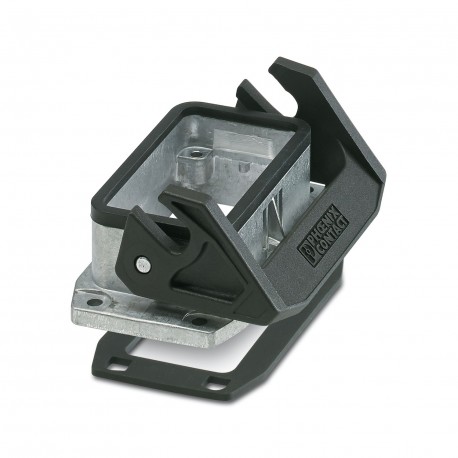

HC-STA-B10-BWS-ELC-AL 1411320 PHOENIX CONTACT Housing
HC-STA-B10-BWS-ELC-AL
1411320
PHOENIX CONTACT
1 Pcs.
Housing
HEAVYCON recessed box, B10, with longitudinal flange, with flat joint, seawater resistant aluminium, conductive profile seal
HEAVYCON panel mounting base, B10, with single locking latch, with flat gasket, salt-water-resistant aluminum, conductive profile gasket
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
| General | also available as a powder-coated or color version: 1373285 HC-STA-B10-BWS-EL/.../... |
Product properties
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Application | Standard |
| Type | B10 |
| Pg screw connection | none |
| Data management status | |
| Article revision | 04 |
Dimensions
| Dimensional drawing |  |
| Width | 53 mm |
| Height | 30.5 mm |
| Length | 93.5 mm |
| Drill hole distance, horizontal | 83 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 4.5 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 65 mm |
Material specifications
| Flammability rating according to UL 94 | V0 (Interlock) |
| Seal material | NBR, conductive |
| NBR, conductive | |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Locking latch material | PA |
Mechanical properties
| Mechanical data | |
| Locking type | Latch |
Connection data
| Tightening torque | 0.8 Nm ... 1.2 Nm (For M4 mounting screws on the panel-mount base) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 53 mm |
| Height (EF000040) | 30.5 mm |
| Depth (EF000049) | 93.5 mm |
| Type of housing (EF006980) | Housing extension |
| Housing material (EF001596) | Aluminium |
| Coating housing (EF001601) | Uncoated |
| Housing colour (EF000136) | Other |
| Position cable feed (EF008218) | Other |
| Position of the shackle (EF008459) | Cover |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | None |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Type of locking (EF000208) | Single locking lever |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | Yes |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK08 |
