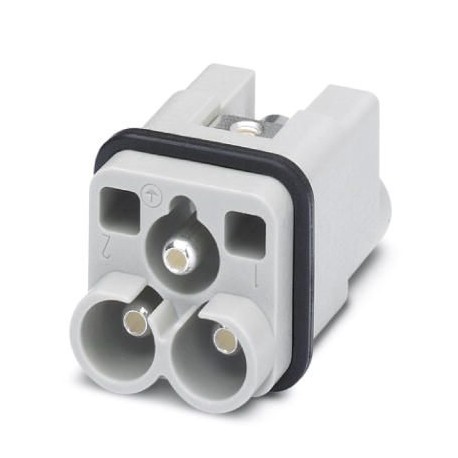

PHOENIX CONTACT HC-HS 2-D7-ESTS HC-HS 2-D7-ESTS 1586277 PHOENIX CONTACT Contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-HS 2-D7-ESTS 1586277 PHOENIX CONTACT Contact insert

HC-HS 2-D7-ESTS

1586277

PHOENIX CONTACT

10 Pcs.

Contact insert Contact insert, number of poles: 2+PE, size: D7, power contacts: 2, Male, Axial screw connection, 400 V, 40 A, 4 mm² ... 10 mm², Application: Power

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1586277
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 507 (C-2-2017)
GTIN4046356410229
Weight per Piece (excluding packing)23.410 g
Custom tariff number85366990
Country of originDE (Germany)

General

Notefor HC-D7 housing, axial connection 2.0 mm, Allen key
The axial screw connection must be established using a 2 mm Allen key (for stranded conductors only)
Connection methodAxial screw connection
Tightening torque1.8 Nm
Degree of pollution3
Overvoltage categoryIII
Number of positions2+PE
Insertion/withdrawal cycles≥ 500
SizeD7
Contact numbering1 - 2
Conductor cross section4 mm² ... 10 mm²
Connection cross section AWG10 ... 8
Stripping length of the individual wire8 mm +1
Assembly instructionsTo ensure correct use, installation in housing with IP54 protection or better is required
ConnectionNote regarding axial connection technology:
Only for stranded wires. The specified conductor cross sections refer to the geometric cross section of the cable used.
Cables with a geometric cross section which deviates significantly from the nominal cable cross section must be checked before use.
The axial connection technology connection space is designed for fine strand cables according to VDE 0295 Class 5. Deviating cable structures (e.g., Class 6 cables) must be checked before use.
Assembly instructions
Before assembly, ensure that the tapered screw is fully loosened (chamber is open). Cables must not be twisted. The wires must be pushed into the contact chamber as far as they will go (until the insulation touches the contact). Hold the wires in position and tighten using an Allen key. The used wire end must be cut off before reconnection. The terminal screw must only be retightened once to prevent the litz wires from breaking. To prevent damage to the contact, the wire/cable must be mechanically held at an appropriate distance from the connection point (e.g., when used in a plate cut out). For notes on correct execution, see DIN VDE 0100-520:2003-06. Unused connections must be tightened with maximum torque.

Ambient conditions

Ambient temperature (operation)-40 °C ... 125 °C (including heating up of contacts)

Material data

Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPC

Electrical characteristics

Rated voltage (III/3)400 V
Rated surge voltage6 kV
Rated current40 A

Standards and Regulations

Connection in acc. with standardCUL
Constructional and testing regulationsDIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1586277 Connectors (EC000438)
Feature Name Feature Value
Number of power contacts (EF012216) 2
Number of control contacts (EF012217) 0
Contact insert without contacts (EF007324) No
Contact type (EF001587) Pin
Number of poles (EF001391) 2
Diameter plug-in contact (EF007320) 4 mm
Material connector insert (EF007545) Thermoplastic
Rated current In (EF008250) 40 A
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 3
Type of electric connection (EF003961) Screw connection
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 4 mm²
Connectable conductor cross section multi-wired (EF007343) 4 mm²
Material of contact surface (EF004020) Other
Material of contact insert (EF008521) Thermoplastic
Material contact (EF007544) Other copper alloys
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) Yes
Min. number of insertion cycles (EF012212) 500
Width (EF000008) 21 mm
Height (EF000040) 40 mm
Depth (EF000049) 21 mm
