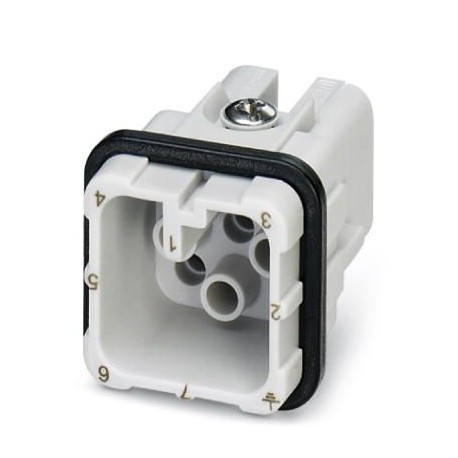

HC-D 7-I-CT-M 1584334 PHOENIX CONTACT Contact insert
HC-D 7-I-CT-M
1584334
PHOENIX CONTACT
1 Pcs.
Contact insert
Contact insert, number of poles: 7+PE, size: D7, number of connections per pole: 1, Male, Crimped connection, 250 V, 10 A, 0.14 mm² ... 2.5 mm², only suitable for plastic housings
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1584334 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 503 (C-2-2017) |
| GTIN | 4046356142595 |
| Weight per Piece (excluding packing) | 8.500 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
General
| Note | For HC-D7 housing, crimp contacts CK1,6-ED (crimp contacts not included in scope of supply) |
|---|---|
| Connection method | Crimp connection |
| Number of connections per position | 1 |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Number of positions | 7+PE |
| Insertion/withdrawal cycles | ≥ 500 |
| Size | D7 |
| Contact numbering | 1 - 7 |
| Conductor cross section | 0.14 mm² ... 2.5 mm² |
| Connection cross section AWG | 26 ... 14 |
| Stripping length of the individual wire | 8 mm (0.14 ... 1.5 mm²) |
| 6 mm (2.5 mm²) | |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
| The contact insert may on be installed in plastic housings of the HC-D07-STA...-PL-BK range. |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
|---|
Material data
| Seal material | NBR |
|---|---|
| Contact material | Copper alloy |
| Contact surface material | Ag (alternatively Au) |
| Contact carrier material | PC |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Standards and Regulations
| Constructional and testing regulations | DIN VDE 0627/86 |
|---|---|
| DIN VDE 0110/02.79 | |
| DIN VDE 0110-1/04.97 | |
| IEC 60664-1, DIN IEC 60512 | |
| IEC 60352 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 7 |
| Number of control contacts (EF012217) | 0 |
| Contact insert without contacts (EF007324) | Yes |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 7 |
| Diameter plug-in contact (EF007320) | 1.6 mm |
| Material connector insert (EF007545) | Thermoplastic |
| Rated current In (EF008250) | 10 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 250 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Crimp connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.14 mm² |
| Material of contact surface (EF004020) | Other |
| Material of contact insert (EF008521) | Thermoplastic |
| Material contact (EF007544) | Other copper alloys |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | Yes |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 21 mm |
| Height (EF000040) | 32 mm |
| Depth (EF000049) | 21 mm |
