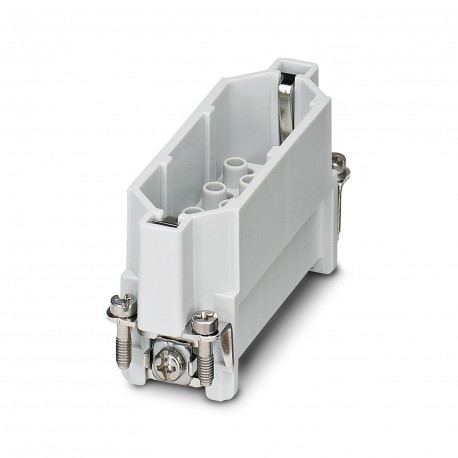

HC-D 25-I-CT-M 1584392 PHOENIX CONTACT Contact insert

HC-D 25-I-CT-M

1584392

PHOENIX CONTACT

1 Pcs.

Contact insert Contact insert, number of poles: 25+PE, size: D25, number of connections per pole: 1, Male, Crimped connection, 250 V, 10 A, 0.14 mm² ... 2.5 mm² Contact insert, number of positions: 25+PE, size: D25, number of connections per position: 1, Pin, Crimp connection, 250 V, 10 A, 0.14 mm2 ... 2.5 mm2

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralFor HEAVYCON housing type D25, CK1,6-ED crimp contacts (crimp contacts not supplied as standard)
GeneralConnectors may be operated only when there is no load/voltage.
GeneralIt is imperative that guide pins (HC-CST) and sockets (HC-CBU) are used to prevent tip collision due to misalignment.
Mounting
Assembly noteTo ensure correct use, installation in housing with IP54 protection or better is required
Product properties
Product typeContact insert with a fixed no. of positions
SeriesHC-D
TypeD25
D50
Number of positions25
Note number of positions25+PE
Connection profile25+PE
Number of connections per position1
Contact material typeturned
rolled
Data management status
Article revision09
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Dimensions
Dimensional drawingnblgfanktr.jpg
Width22.5 mm
Height34.2 mm
Length72 mm
Drill hole distance, horizontal66 mm
Drill hole distance, vertical16 mm
Mechanical characteristics
Contact diameter1.6 mm
Connection data
Connection technology
Connection technologyCrimp connection
Number of connections per position1
Connection in acc. with standardIEC / EN
Conductor connection
Conductor cross section0.14 mm² ... 2.5 mm²
Connection cross section AWG26 ... 14
Tightening torque0.7 Nm ... 1 Nm (PE connection)
0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
Stripping length of the individual wire8 mm (0.14 mm² ... 1.5 mm²)
6 mm (2.5 mm²)
Electrical properties
Rated voltage (III/3)250 V
Rated surge voltage4 kV
Rated current10 A
SCCR5 kA (UL 2237)
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 500
Material specifications
Flammability rating according to UL 94V0
Contact materialCopper alloy
Contact surface materialAg (alternatively Au)
Contact carrier materialPC
Standards/regulationsPC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 125 °C (including heating up of contacts)
Standards and regulations
Constructional and testing regulationsDIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352
TestsDIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352
Testing
Standards/regulationsPC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

ETIM for 1584392 Connectors (EC000438)
Feature Name Feature Value
Number of power contacts (EF012216) 25
Number of control contacts (EF012217) 0
Contact insert without contacts (EF007324) Yes
Contact type (EF001587) Pin
Number of poles (EF001391) 25
Diameter plug-in contact (EF007320) 1.6 mm
Material connector insert (EF007545) Thermoplastic
Rated current In (EF008250) 10 A
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 250 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 3
Type of electric connection (EF003961) Crimp connection
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section multi-wired (EF007343) 0.14 mm²
Material of contact surface (EF004020) Other
Material of contact insert (EF008521) Thermoplastic
Material contact (EF007544) Other copper alloys
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) Yes
Min. number of insertion cycles (EF012212) 500
Width (EF000008) 22.5 mm
Height (EF000040) 34.2 mm
Depth (EF000049) 72 mm
