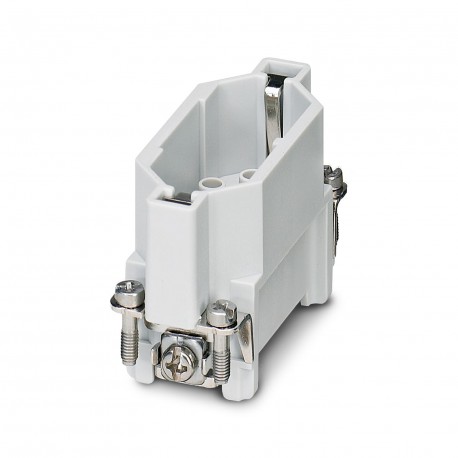

PHOENIX CONTACT HC-D 15-I-CT-M HC-D 15-I-CT-M 1584376 PHOENIX CONTACT Contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-D 15-I-CT-M 1584376 PHOENIX CONTACT Contact insert

HC-D 15-I-CT-M

1584376

PHOENIX CONTACT

1 Pcs.

Contact insert Contact insert, number of poles: 15+PE, size: D15, number of connections per pole: 1, Male, Crimped connection, 250 V, 10 A, 0.14 mm² ... 2.5 mm²

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1584376
Packing unit1 pc
Catalog pagePage 517 (C-2-2017)
GTIN4046356142632
Weight per Piece (excluding packing)25.900 g
Custom tariff number85389099
Country of originCN (China)

General

NoteFor HEAVYCON housing of type D15
Connection methodCrimp connection
Number of connections per position1
Degree of pollution3
Overvoltage categoryIII
Number of positions15+PE
Insertion/withdrawal cycles≥ 500
SizeD15
Conductor cross section0.14 mm² ... 2.5 mm²
Connection cross section AWG26 ... 14
Stripping length of the individual wire8 mm (0.14 ... 1.5 mm²)
6 mm (2.5 mm²)
Assembly instructionsTo ensure correct use, installation in housing with IP54 protection or better is required
ConnectionConnectors may be plugged in only when there is no load/voltage.

Ambient conditions

Ambient temperature (operation)-40 °C ... 125 °C (including heating up of contacts)

Material data

Contact materialCopper alloy
Contact surface materialAg (alternatively Au)
Contact carrier materialPC
Standards/regulationsPC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Electrical characteristics

Rated voltage (III/3)250 V
Rated surge voltage4 kV
Rated current10 A

Standards and Regulations

Constructional and testing regulationsDIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1584376 Connectors (EC000438)
Feature Name Feature Value
Number of power contacts (EF012216) 15
Number of control contacts (EF012217) 0
Contact insert without contacts (EF007324) Yes
Contact type (EF001587) Pin
Number of poles (EF001391) 15
Diameter plug-in contact (EF007320) 1.6 mm
Material connector insert (EF007545) Thermoplastic
Rated current In (EF008250) 10 A
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 250 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 3
Type of electric connection (EF003961) Crimp connection
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section multi-wired (EF007343) 0.14 mm²
Material of contact surface (EF004020) Other
Material of contact insert (EF008521) Thermoplastic
Material contact (EF007544) Other copper alloys
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) Yes
Min. number of insertion cycles (EF012212) 500
Width (EF000008) 22.5 mm
Height (EF000040) 34.2 mm
Depth (EF000049) 55.4 mm
