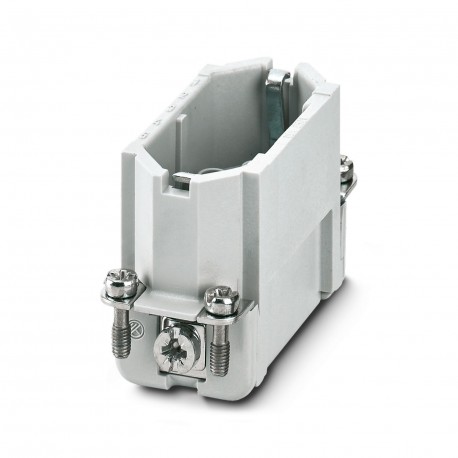

HC-D 15-ESTC-R 1679469 PHOENIX CONTACT Contact insert

HC-D 15-ESTC-R

1679469

PHOENIX CONTACT

10 Pcs.

Contact insert HEAVYCON male insert, D15 series, 15-pos., crimp connection, rolled contacts

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralFor HEAVYCON housing of type D15
Mounting
Assembly noteTo ensure correct use, installation in housing with IP54 protection or better is required
Connectors may be plugged in only when there is no load/voltage.
Product properties
Product typeContact insert with a fixed no. of positions
SeriesHC-D
TypeD15
Number of positions15
Connection profile15+PE
Contact material typerolled
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Dimensions
Dimensional drawingmbxglwwpnd.jpg
Width22.7 mm
Height34 mm
Length56 mm
Drill hole distance, horizontal49.5 mm
Drill hole distance, vertical16 mm
Mechanical characteristics
Contact diameter1.6 mm
Connection data
Connection technology
Connection technologyCrimp connection
Connection in acc. with standardIEC / EN
Conductor connection
Conductor cross section0.14 mm² ... 1.5 mm²
Connection cross section AWG26 ... 16
Stripping length of the individual wire3 mm +0,5 mm (0.14 mm² ... 0.5 mm²)
3.5 mm +1 mm (0.5 mm² ... 1.5 mm²)
Electrical properties
Rated voltage (III/3)250 V
Rated surge voltage4 kV
Rated current10 A
Test voltage4 kV AC
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 500
Material specifications
Flammability rating according to UL 94V0
Contact materialCopper alloy
Contact surface materialAg (alternatively Au)
Contact carrier materialPC
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 125 °C (including heating up of contacts)
Standards and regulations
Constructional and testing regulationsDIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352
TestsDIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352
