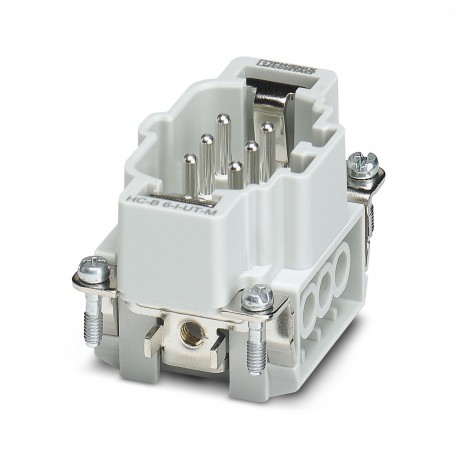

PHOENIX CONTACT HC-B 6-I-UT-M HC-B 6-I-UT-M 1648115 PHOENIX CONTACT HEAVYCON male insert, B6 series, 6-pos., screw connection View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-B 6-I-UT-M 1648115 PHOENIX CONTACT HEAVYCON male insert, B6 series, 6-pos., screw connection

HC-B 6-I-UT-M

1648115

PHOENIX CONTACT

1 Pcs.

HEAVYCON male insert, B6 series, 6-pos., screw connection Contact insert, number of poles: 6+PE, size: B6, number of connections per pole: 1, Male, Screw connection, 500 V, 16 A, 0.5 mm² ... 2.5 mm², Application: Power

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Generalfor flexible conductors with or without ferrules
GeneralConnectors may be operated only when there is no load/voltage.
Mounting
Assembly noteTo ensure correct use, installation in housing with IP54 protection or better is required
Product properties
Product typeContact insert with a fixed no. of positions
SeriesHC-B
ApplicationPower
TypeB6
Number of positions6
Connection profile6+PE
Contact numbering1 - 6
Number of connections per position1
Contact material typeturned
Screwdriver blade0.5 x 3.5 mm
Data management status
Article revision18
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Dimensions
Dimensional drawingmlcvvmnxfr.jpg
Width34 mm
Height32 mm
Length50.5 mm
Drill hole distance, horizontal44 mm
Drill hole distance, vertical27 mm
Mechanical characteristics
Contact diameter2.5 mm
Connection data
Connection technology
Connection technologyScrew connection
Number of connections per position1
Connection in acc. with standardIEC / EN
Conductor connection
Conductor cross section0.5 mm² ... 2.5 mm²
Connection cross section AWG20 ... 14
Tightening torque0.8 Nm ... 1.2 Nm (PE connection)
0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
0.5 Nm ... 0.8 Nm
Stripping length of the individual wire8 mm
Electrical properties
Rated voltage (III/3)500 V
Rated surge voltage6 kV
Rated current16 A
SCCR5 kA (UL 2237)
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 500
Material specifications
Flammability rating according to UL 94V0
Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPC
Standards/regulationsPC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 125 °C (including heating up of contacts)
Standards and regulations
Constructional and testing regulationsDIN EN 61984
DIN EN 60664
IEC 60352
TestsDIN EN 61984
DIN EN 60664
IEC 60352
Testing
Standards/regulationsPC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

ETIM for 1648115 Connectors (EC000438)
Feature Name Feature Value
Number of power contacts (EF012216) 6
Number of control contacts (EF012217) 0
Contact insert without contacts (EF007324) No
Contact type (EF001587) Pin
Number of poles (EF001391) 6
Diameter plug-in contact (EF007320) 2.5 mm
Material connector insert (EF007545) Thermoplastic
Rated current In (EF008250) 16 A
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 500 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 3
Type of electric connection (EF003961) Screw connection
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Material of contact surface (EF004020) Other
Material of contact insert (EF008521) Thermoplastic
Material contact (EF007544) Other copper alloys
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) Yes
Min. number of insertion cycles (EF012212) 500
Width (EF000008) 34 mm
Height (EF000040) 32 mm
Depth (EF000049) 50.5 mm
