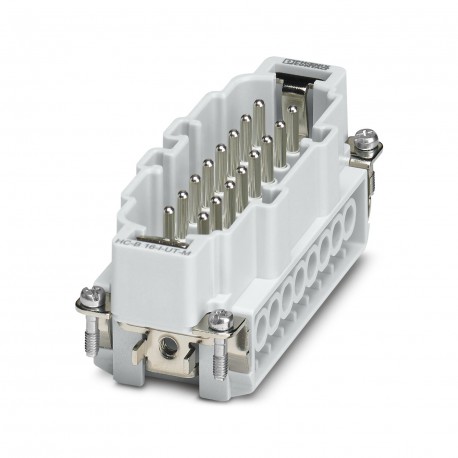

PHOENIX CONTACT HC-B 16-I-UT-M-32 HC-B 16-I-UT-M-32 1584871 PHOENIX CONTACT Contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-B 16-I-UT-M-32 1584871 PHOENIX CONTACT Contact insert

HC-B 16-I-UT-M-32

1584871

PHOENIX CONTACT

1 Pcs.

Contact insert Contact insert, number of poles: 16+PE, size: B16, Male, Screw connection, 500 V, 16 A, 0.5 mm² ... 2.5 mm²

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1584871
Packing unit1 pc
Catalog pagePage 539 (C-2-2017)
GTIN4046356156080
Weight per Piece (excluding packing)83.600 g
Custom tariff number85366990
Country of originCN (China)

General

NoteFor HEAVYCON-ADVANCE of B16 type and HEAVYCON housing of B16/B32 type Plug-in connections may only be operated only when there is no load/voltage.
Connectors may be operated only when there is no load/voltage.
Connection methodScrew connection
Tightening torque0.5 Nm ... 0.8 Nm
Screwdriver blade0.5 x 3.5 mm
Degree of pollution3
Overvoltage categoryIII
Number of positions16+PE
Insertion/withdrawal cycles≥ 500
SizeB16
Contact numbering17 - 32
Conductor cross section0.5 mm² ... 2.5 mm² (applies to stranded conductors with ferrules)
Connection cross section AWG20 ... 14
Stripping length of the individual wire8 mm
Assembly instructionsTo ensure correct use, installation in housing with IP54 protection or better is required
ConnectionConnectors may only be actuated when there is no load/voltage.

Ambient conditions

Ambient temperature (operation)-40 °C ... 125 °C (including heating up of contacts)

Material data

Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPC

Electrical characteristics

Rated voltage (III/3)500 V
Rated surge voltage6 kV
Rated current20 A

Standards and Regulations

Connection in acc. with standardCSA
Constructional and testing regulationsDIN EN 61984
DIN EN 60664
IEC 60352
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1584871 Connectors (EC000438)
Feature Name Feature Value
Number of power contacts (EF012216) 16
Number of control contacts (EF012217) 0
Contact insert without contacts (EF007324) No
Contact type (EF001587) Pin
Number of poles (EF001391) 16
Diameter plug-in contact (EF007320) 2.5 mm
Material connector insert (EF007545) Thermoplastic
Rated current In (EF008250) 16 A
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 500 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 3
Type of electric connection (EF003961) Screw connection
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Material of contact surface (EF004020) Other
Material of contact insert (EF008521) Thermoplastic
Material contact (EF007544) Other copper alloys
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) Yes
Min. number of insertion cycles (EF012212) 500
Width (EF000008) 34 mm
Height (EF000040) 32 mm
Depth (EF000049) 84 mm
