View larger
Images are for illustrative purposes only. Please refer to data sheet for details

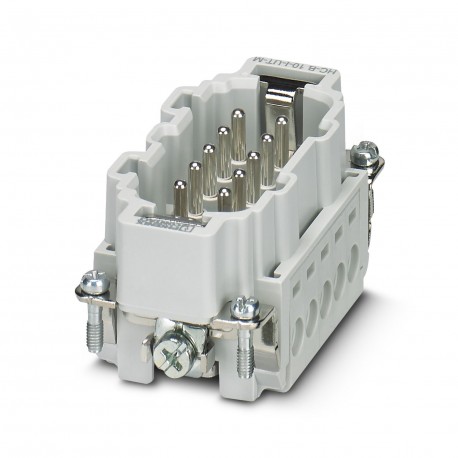

HC-B 10-I-UT-M 1648173 PHOENIX CONTACT HEAVYCON male insert, B10 series, 10-pos., screw connection
HC-B 10-I-UT-M
1648173
PHOENIX CONTACT
1 Pcs.
HEAVYCON male insert, B10 series, 10-pos., screw connection
Contact insert, number of poles: 10+PE, size: B10, number of connections per pole: 1, Male, Screw connection, 500 V, 16 A, 0.5 mm² ... 2.5 mm², Application: Power
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Note | For HEAVYCON ADVANCE and HEAVYCON housing of B10 type. Plug-in connections may only be operated only when there is no load/voltage. |
|---|---|
| Connection method | Screw connection |
| Tightening torque | 0.5 Nm ... 0.8 Nm |
| Screwdriver blade | 0.5 x 3.5 mm |
| Pollution degree | 3 |
| Overvoltage category | III |
| Constructional and testing regulations | DIN EN 61984 |
| DIN EN 60664 | |
| IEC 60352 | |
| Number of positions | 10+PE |
| Insertion/withdrawal cycles | ≥ 500 |
| Type | B10 |
| Connection in acc. with standard | IEC / EN |
| Conductor cross section | 0.5 mm² ... 2.5 mm² (Applies to stranded conductors with ferrules) |
| Connection cross section AWG | 20 ... 14 |
| Stripping length of the individual wire | 8 mm |
| Assembly instructions | Coding also using the CP-HC (1686478) coding profiles. HC-B6../ HC-B10..for two coding profiles. HC-B16../ HC-B24..for four coding profiles. |
| Connection | For housings of type B10. Connectors may only be actuated when there is no load/voltage. |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
|---|
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PA |
| Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22 and R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL2) |
| PA: Fire protection in rail vehicles - requirement set R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Electrical characteristics
| Rated voltage (III/3) | 500 V |
|---|---|
| Rated surge voltage | 6 kV |
| Rated current | 16 A |
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 10 |
| Number of control contacts (EF012217) | 0 |
| Contact insert without contacts (EF007324) | No |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 10 |
| Diameter plug-in contact (EF007320) | 2.5 mm |
| Material connector insert (EF007545) | Thermoplastic |
| Rated current In (EF008250) | 16 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 500 V |
| Rated surge voltage (EF002993) | 6 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Screw connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.5 mm² |
| Material of contact surface (EF004020) | Other |
| Material of contact insert (EF008521) | Thermoplastic |
| Material contact (EF007544) | Other copper alloys |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | Yes |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 34 mm |
| Height (EF000040) | 32 mm |
| Depth (EF000049) | 64 mm |
