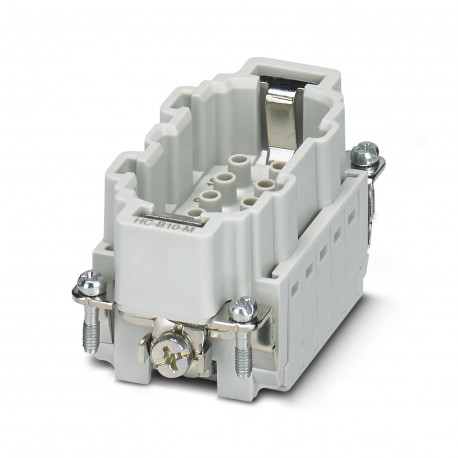

HC-B 10-I-CT-M 1648212 PHOENIX CONTACT Contact insert
HC-B 10-I-CT-M
1648212
PHOENIX CONTACT
1 Pcs.
Contact insert
Contact insert, number of poles: 10+PE, size: B10, number of connections per pole: 1, Male, Crimped connection, 500 V, 16 A, 0.5 mm² ... 4 mm², Application: Power
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1648212 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 537 (C-2-2017) |
| GTIN | 4046356092340 |
| Weight per Piece (excluding packing) | 46.200 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
General
| Note | For HEAVYCON ADVANCE and HEAVYCON housing of B10 type, crimp contacts CK 2,5-ED (crimp contacts not included in the scope of supply). |
|---|---|
| Connectors may be operated only when there is no load/voltage. | |
| Connection method | Crimp connection |
| Number of connections per position | 1 |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Number of positions | 10+PE |
| Insertion/withdrawal cycles | ≥ 500 |
| Size | B10 |
| Contact numbering | 1 - 10 |
| Conductor cross section | 0.5 mm² ... 4 mm² |
| Connection cross section AWG | 20 ... 12 |
| Stripping length of the individual wire | 7.5 mm |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
| Connection | For housing type B10. Connectors may only be inserted when there is no load/the power is switched off. Use a screwdriver to remove the crimp contacts. The opening for the screwdriver is next to the opening where the conductor is inserted. |
Ambient conditions
| Degree of protection (IP) | IP20 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
Material data
| Contact material | Copper alloy |
|---|---|
| Contact surface material | Ag (alternatively Au) |
| Contact carrier material | PA |
| Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22 and R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL2) |
| PA: Fire protection in rail vehicles - requirement set R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| Constructional and testing regulations | DIN EN 61984 |
| DIN EN 60664 | |
| IEC 60352 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 10 |
| Number of control contacts (EF012217) | 0 |
| Contact insert without contacts (EF007324) | Yes |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 10 |
| Diameter plug-in contact (EF007320) | 2.5 mm |
| Material connector insert (EF007545) | Thermoplastic |
| Rated current In (EF008250) | 16 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 500 V |
| Rated surge voltage (EF002993) | 6 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Crimp connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.5 mm² |
| Material of contact surface (EF004020) | Other |
| Material of contact insert (EF008521) | Thermoplastic |
| Material contact (EF007544) | Other copper alloys |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | Yes |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 34 mm |
| Height (EF000040) | 32 mm |
| Depth (EF000049) | 64 mm |
