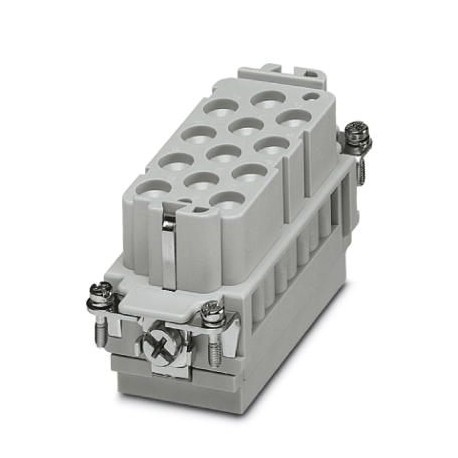

HC-K12/ 2-EBUC 1636347 PHOENIX CONTACT Contact insert
HC-K12/ 2-EBUC
1636347
PHOENIX CONTACT
1 Pcs.
Contact insert
Contact insert, number of poles: 12+2+PE, size: B16, power contacts: 12, control contacts: 2, Female, Crimped connection, 690 V, 40 A, 1.5 mm² ... 6 mm²
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1636347 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 559 (C-2-2017) |
| GTIN | 4046356011488 |
| Weight per Piece (excluding packing) | 83.800 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
General
| Note | For HEAVYCON ADVANCE and HEAVYCON housing of type B16/B32, power contacts: CK 4,0-ED, control contacts: CK 1,6-ED (crimp contacts not supplied as standard) |
|---|---|
| Connection method | Crimp connection (power contacts) |
| Crimp connection (control contacts) | |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Number of positions | 12+2+PE |
| No. of power contacts | 12 |
| No. of control contacts | 2 |
| Insertion/withdrawal cycles | ≥ 500 |
| Size | B16 |
| Contact numbering | 1 - 12 |
| Conductor cross section | 1.5 mm² ... 6 mm² (power contacts) |
| 0.14 mm² ... 2.5 mm² (control contact) | |
| Connection cross section AWG | 16 ... 10 (power contacts) |
| 26 ... 14 (control contacts) | |
| Stripping length of the individual wire | 9 mm (1,5 mm² ... 2,5 mm²) |
| 8 mm (0.14 ... 1.5 mm²) | |
| 9.5 mm (4 mm² ... 6 mm²) | |
| 6 mm (2.5 mm²) | |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
Material data
| Contact material | Cu alloy |
|---|---|
| Material of contact surface, power contact | Ag |
| Material of contact surface, control contact | Ag (alternatively Au) |
| Contact carrier material | PC |
Electrical characteristics
| Rated voltage (III/3) | 690 V (power contacts) |
|---|---|
| 250 V (control contacts) | |
| Rated surge voltage | 8 kV (power contacts) |
| 4 kV (control contacts) | |
| Rated current | 40 A (power contacts) |
| 10 A (control contacts) |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 12 |
| Number of control contacts (EF012217) | 2 |
| Contact insert without contacts (EF007324) | Yes |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 14 |
| Diameter plug-in contact (EF007320) | 4 mm |
| Material connector insert (EF007545) | Thermoplastic |
| Rated current In (EF008250) | 40 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 690 V |
| Rated surge voltage (EF002993) | 8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Crimp connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 1.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Material of contact surface (EF004020) | Other |
| Material of contact insert (EF008521) | Thermoplastic |
| Material contact (EF007544) | Other copper alloys |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | Yes |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 34 mm |
| Height (EF000040) | 41.5 mm |
| Depth (EF000049) | 84.5 mm |
