View larger
Images are for illustrative purposes only. Please refer to data sheet for details

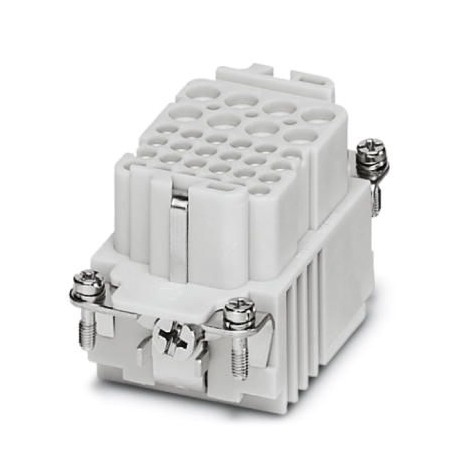

HC-K 8/24-EBUC 1636321 PHOENIX CONTACT Contact insert
HC-K 8/24-EBUC
1636321
PHOENIX CONTACT
1 Pcs.
Contact insert
Contact insert, number of poles: 8+24+PE, size: B10, power contacts: 8, control contacts: 24, Female, Crimped connection, 230 V, 16 A, 0.5 mm² ... 4 mm²
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1636321 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 559 (C-2-2017) |
| GTIN | 4046356011464 |
| Weight per Piece (excluding packing) | 59.900 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
General
| Note | For housing HC-B10, power contacts: CK 2,5-ED, control contacts: CK 1,6-ED (crimp contacts not included in scope of delivery) |
|---|---|
| Connection method | Crimp connection (power contacts) |
| Crimp connection (Signal contacts) | |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Number of positions | 8+24+PE |
| No. of power contacts | 8 |
| No. of control contacts | 24 |
| Insertion/withdrawal cycles | ≥ 500 |
| Size | B10 |
| Contact numbering | 1 - 8 |
| Conductor cross section | 0.5 mm² ... 4 mm² (power contacts) |
| 0.14 mm² ... 2.5 mm² (control contacts) | |
| Connection cross section AWG | 20 ... 12 (power contacts) |
| 26 ... 14 (control contacts) | |
| Stripping length of the individual wire | 7.5 mm |
| 8 mm (0.14 ... 1.5 mm²) | |
| 6 mm (2.5 mm²) | |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
| Connection | Connectors may be plugged in only when there is no load/voltage. |
Material data
| Contact material | Cu alloy |
|---|---|
| Material of contact surface, power contact | Ag (alternat. Au) |
| Material of contact surface, control contact | Ag (alternatively Au) |
| Contact carrier material | PA |
Electrical characteristics
| Rated voltage for power contacts | 230/400 V |
|---|---|
| Rated voltage (III/3) | 230 V (Power contacts wire-ground) |
| 160 V | |
| 400 V (Power contacts wire-wire) | |
| Rated surge voltage | 4 kV (power contacts) |
| 2.5 kV (control contacts) | |
| Rated current | 16 A (power contacts) |
| 10 A (control contacts) |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 8 |
| Number of control contacts (EF012217) | 24 |
| Contact insert without contacts (EF007324) | Yes |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 32 |
| Diameter plug-in contact (EF007320) | 2.5 mm |
| Material connector insert (EF007545) | Thermoplastic |
| Rated current In (EF008250) | 16 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 230 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Crimp connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.5 mm² |
| Material of contact surface (EF004020) | Other |
| Material of contact insert (EF008521) | Thermoplastic |
| Material contact (EF007544) | Other copper alloys |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | Yes |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 34 mm |
| Height (EF000040) | 38 mm |
| Depth (EF000049) | 64 mm |
