View larger
Images are for illustrative purposes only. Please refer to data sheet for details

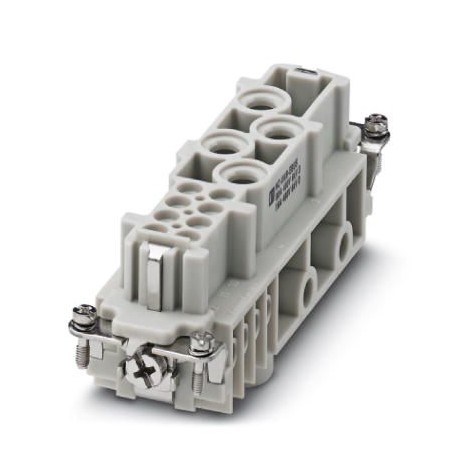

HC-K 4/8-EBUS 1679320 PHOENIX CONTACT Contact insert
HC-K 4/8-EBUS
1679320
PHOENIX CONTACT
1 Pcs.
Contact insert
Contact insert, number of poles: 4+8+2PE, size: B24, power contacts: 4, control contacts: 8, Female, Screw connection, 400 V, 80 A, 1.5 mm² ... 16 mm²
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1679320 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 557 (C-2-2017) |
| GTIN | 4017918163563 |
| Weight per Piece (excluding packing) | 148.500 g |
| Custom tariff number | 85366990 |
| Country of origin | RO (Romania) |
General
| Note | For housing HC-B24 |
|---|---|
| Connection method | Screw connection (power contacts) |
| Screw connection (control contacts) | |
| Tightening torque | 2 Nm (Power contact, 2.5 mm²) |
| 3 Nm (Power contact, 4 ... 16 mm²) | |
| 1.2 Nm (Power contact, 1.5 mm²) | |
| 0.5 Nm (control contacts) | |
| Screwdriver blade | 0.8 x 4.5 mm (power contacts) |
| 0.5 x 3.5 mm (control contacts) | |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Number of positions | 4+8+2PE |
| No. of power contacts | 4 |
| No. of control contacts | 8 |
| Insertion/withdrawal cycles | ≥ 500 |
| Size | B24 |
| Contact numbering | 1 - 4 |
| Conductor cross section | 1.5 mm² ... 16 mm² (power contacts) |
| 0.5 mm² ... 2.5 mm² (control contacts) | |
| Connection cross section AWG | 16 ... 6 (power contacts) |
| 20 ... 14 (control contacts) | |
| Stripping length of the individual wire | 14 mm (Power contact) |
| 7 mm (control contact) | |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
| Connection | Use wire end protection (screw connections do not have wire protection) |
Material data
| Contact material | Copper alloy |
|---|---|
| Contact surface material | Ag (alternatively Au) |
| Material of contact surface, power contact | Ag |
| Material of contact surface, control contact | Ag |
| Contact carrier material | PA |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Electrical characteristics
| Rated voltage (III/3) | 400 V (power contacts) |
|---|---|
| 400 V (control contacts) | |
| Rated surge voltage | 6 kV (power contacts) |
| 6 kV (control contacts) | |
| Rated current | 80 A (power contacts) |
| 16 A (control contacts) |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 4 |
| Number of control contacts (EF012217) | 8 |
| Contact insert without contacts (EF007324) | No |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 12 |
| Diameter plug-in contact (EF007320) | 6 mm |
| Material connector insert (EF007545) | Thermoplastic |
| Rated current In (EF008250) | 80 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 400 V |
| Rated surge voltage (EF002993) | 6 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Screw connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 1.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Material of contact surface (EF004020) | Other |
| Material of contact insert (EF008521) | Thermoplastic |
| Material contact (EF007544) | Other copper alloys |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | Yes |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 34 mm |
| Height (EF000040) | 44.2 mm |
| Depth (EF000049) | 111 mm |
