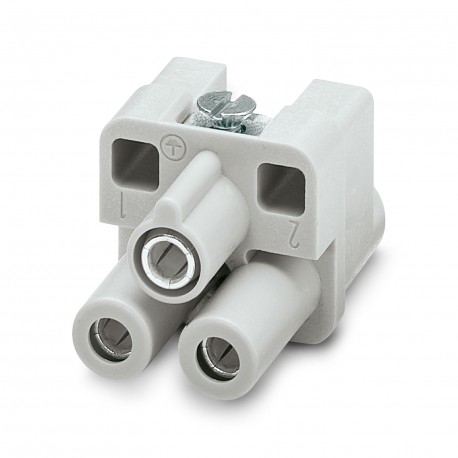

PHOENIX CONTACT HC-HS 2-D7-EBUS HC-HS 2-D7-EBUS 1586264 PHOENIX CONTACT Contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-HS 2-D7-EBUS 1586264 PHOENIX CONTACT Contact insert

HC-HS 2-D7-EBUS

1586264

PHOENIX CONTACT

10 Pcs.

Contact insert Contact insert, number of poles: 2+PE, size: D7, power contacts: 2, Female, Axial screw connection, 400 V, 40 A, 4 mm² ... 10 mm², Application: Power

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

Technical data

Notes
Generalfor HC-D7 housing, axial connection 2.0 mm, Allen key
GeneralConnectors may be operated only when there is no load/voltage.
GeneralThe axial screw connection must be established using a 2 mm Allen key (for stranded conductors only)

Mounting
Assembly noteTo ensure correct use, installation in housing with IP54 protection or better is required
Note regarding axial connection technology:
Only for stranded wires. The specified conductor cross sections refer to the geometric cross section of the cable used.
Cables with a geometric cross section which deviates significantly from the nominal cable cross section must be checked before use.
The axial connection technology connection space is designed for fine strand cables according to VDE 0295 Class 5. Deviating cable structures (e.g., Class 6 cables) must be checked before use.
Assembly instructions
Before assembly, ensure that the tapered screw is fully loosened (chamber is open). Cables must not be twisted. The wires must be pushed into the contact chamber as far as they will go (until the insulation touches the contact). Hold the wires in position and tighten using an Allen key. The used wire end must be cut off before reconnection. The terminal screw must only be retightened once to prevent the litz wires from breaking. To prevent damage to the contact, the wire/cable must be mechanically held at an appropriate distance from the connection point (e.g., when used in a plate cut out). For notes on correct execution, see DIN VDE 0100-520:2003-06. Unused connections must be tightened with maximum torque.
Hexagonal socketSW2,0

Product properties
Product typeContact insert with a fixed no. of positions
SeriesHC-HS
ApplicationPower
TypeD7
Number of positions2
Connection profile2+PE
Contact numbering1 - 2
No. of power contacts2
Contact material typeturned
Data management status
Article revision04
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3

Dimensions
Dimensional drawinggvbgkvboxf.jpg
Width21 mm
Height34.8 mm
Length21 mm
Mechanical characteristics
Contact diameter4 mm

Connection data
Connection technology
Connection technologyAxial screw connection
Connection in acc. with standardIEC / EN
Conductor connection
Conductor cross section4 mm² ... 10 mm² (The cross section specification refers to the geometric cross section of the cable used)
Connection cross section AWG10 ... 8
Tightening torque0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
1.8 Nm
Stripping length of the individual wire8 mm +1 mm

Electrical properties
Rated voltage (III/3)400 V
Rated surge voltage6 kV
Rated current40 A

Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 500

Material specifications
Flammability rating according to UL 94V0
Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPC

Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 125 °C (including heating up of contacts)

Standards and regulations
Constructional and testing regulationsDIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352
TestsDIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352

ETIM for 1586264 Connectors (EC000438)
Feature Name Feature Value
Number of power contacts (EF012216) 2
Number of control contacts (EF012217) 0
Contact insert without contacts (EF007324) No
Contact type (EF001587) Bus
Number of poles (EF001391) 2
Diameter plug-in contact (EF007320) 4 mm
Material connector insert (EF007545) Thermoplastic
Rated current In (EF008250) 40 A
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 3
Type of electric connection (EF003961) Screw connection
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 4 mm²
Connectable conductor cross section multi-wired (EF007343) 4 mm²
Material of contact surface (EF004020) Other
Material of contact insert (EF008521) Thermoplastic
Material contact (EF007544) Other copper alloys
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) Yes
Min. number of insertion cycles (EF012212) 500
Width (EF000008) 21 mm
Height (EF000040) 34.8 mm
Depth (EF000049) 21 mm
