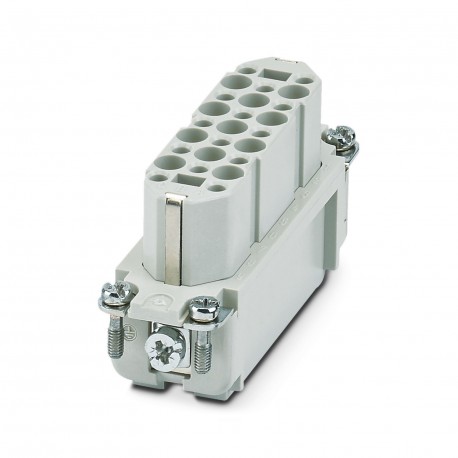

HC-D 25-EBUC-R 1679524 PHOENIX CONTACT Contact insert
HC-D 25-EBUC-R
1679524
PHOENIX CONTACT
1 Pcs.
Contact insert
HEAVYCON female insert, D25 series, 25 poles, crimped connection, stamped contacts
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1679524 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 421 (C-4-2013) |
| GTIN | 4017918163754 |
| Weight per Piece (excluding packing) | 45.320 g |
| Custom tariff number | 85366990 |
| Country of origin | CZ (Czech Republic) |
General
| Note | For HEAVYCON housing of type D25/50, crimp contacts CK1,6-ER / CK1,6-BR (crimp contacts not included in the scope of supply) |
|---|---|
| Connection method | Crimp connection |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Number of positions | 25+PE |
| Insertion/withdrawal cycles | ≥ 500 |
| Size | D25 |
| Conductor cross section | 0.14 mm² ... 1.5 mm² |
| Connection cross section AWG | 26 ... 16 |
| Stripping length of the individual wire | 3 mm +0,5 mm (0,14 mm² ... 0,5 mm²) |
| 3.5 mm +1 (0.5 mm² ... 1.5 mm²) | |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
| Connection | Connectors may be plugged in only when there is no load/voltage. |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
|---|
Material data
| Contact material | Copper alloy |
|---|---|
| Contact surface material | Ag (alternatively Au) |
| Contact carrier material | PC |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| Constructional and testing regulations | DIN VDE 0627/86 |
| DIN VDE 0110/02.79 | |
| DIN VDE 0110-1/04.97 | |
| IEC 60664-1, DIN IEC 60512 | |
| IEC 60352 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
