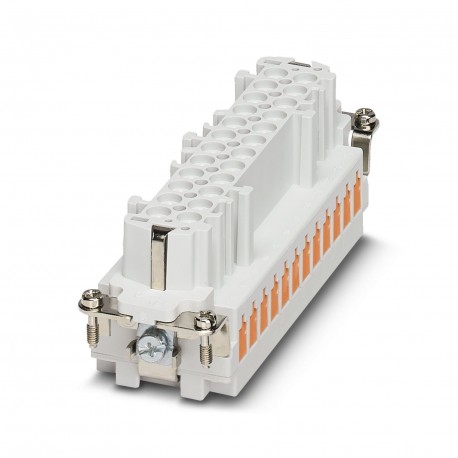

PHOENIX CONTACT HC-B 24-EBUQ-2,5 HC-B 24-EBUQ-2,5 1605585 PHOENIX CONTACT Contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-B 24-EBUQ-2,5 1605585 PHOENIX CONTACT Contact insert

HC-B 24-EBUQ-2,5

1605585

PHOENIX CONTACT

10 Pcs.

Contact insert Contact insert, number of poles: 24+PE, size: B24, number of connections per pole: 1, Female, QUICKON connection, 500 V, 16 A, 0.34 mm² ... 2.5 mm² Contact Element, Number of Poles: 24+PE, Size: B24, Number of Connections Per Pole: 1, Female Connector, QUICKON Connection, 500V, 16A, 0.34mm2 ... 2.5 mm2

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1605585
Packing unit10 pc
Catalog pagePage 541 (C-2-2017)
GTIN4017918940676
Weight per Piece (excluding packing)127.330 g
Custom tariff number85366990
Country of originPL (Poland)

General

NoteFor HEAVYCON ADVANCE and HEAVYCON housing of B24 type. Coding using the CP-HC (1686478) coding profile. HC-B6.../ HC-B10... for two coding profiles. HC-B16.../ HC-B24... for 4 coding profiles. Connectors may be operated only when there is no load/voltage.
Connectors may be operated only when there is no load/voltage.
Connection methodQUICKON connection
Degree of pollution3
Overvoltage categoryIII
Number of positions24+PE
Insertion/withdrawal cycles≥ 500
SizeB24
Contact numbering1 - 24
Conductor cross section0.34 mm² ... 2.5 mm² (Litz wire structure VDE 0295, Class 1 - 5/litz wire diameter >= 0.2 mm)
Connection cross section AWG22 ... 14
Wire diameter including insulation1 mm ... 3.5 mm
Frequency of connections between conductors of the same cross section10
Assembly instructionsTo ensure correct use, installation in housing with IP54 protection or better is required
ConnectionFor housings of type B16/B32. Connectors may only be actuated when there is no load/voltage.

Ambient conditions

Ambient temperature (operation)-40 °C ... 125 °C (including heating up of contacts)
Ambient temperature (assembly)-25 °C ... 50 °C

Material data

Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPA
Material wire insulationPVC / PE
Standards/regulationsPA: Fire protection in rail vehicles - requirement sets R22 and R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL2)
PA: Fire protection in rail vehicles - requirement set R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Electrical characteristics

Rated voltage (III/3)500 V
Rated surge voltage6 kV
6 kV
Rated current16 A
16 A

Standards and Regulations

Connection in acc. with standardCSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1605585 Connectors (EC000438)
Feature Name Feature Value
Number of power contacts (EF012216) 24
Number of control contacts (EF012217) 0
Contact insert without contacts (EF007324) No
Contact type (EF001587) Bus
Number of poles (EF001391) 24
Diameter plug-in contact (EF007320) 2.5 mm
Material connector insert (EF007545) Thermoplastic
Rated current In (EF008250) 16 A
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 500 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 3
Type of electric connection (EF003961) Insulation displacement connection
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.34 mm²
Connectable conductor cross section multi-wired (EF007343) 0.34 mm²
Material of contact surface (EF004020) Other
Material of contact insert (EF008521) Thermoplastic
Material contact (EF007544) Other copper alloys
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) Yes
Min. number of insertion cycles (EF012212) 500
Width (EF000008) 34 mm
Height (EF000040) 37 mm
Depth (EF000049) 111 mm
