View larger
Images are for illustrative purposes only. Please refer to data sheet for details

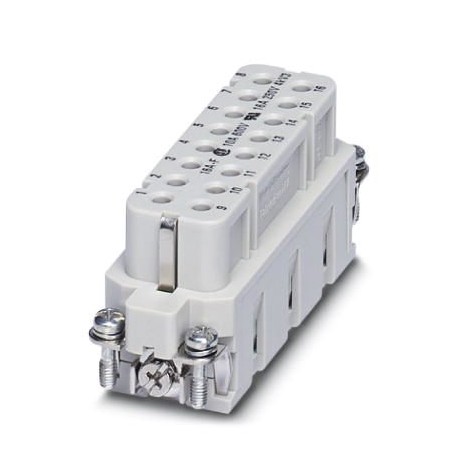

HC-A 16-EBUC 1677018 PHOENIX CONTACT Contact insert
HC-A 16-EBUC
1677018
PHOENIX CONTACT
1 Pcs.
Contact insert
HEAVYCON female insert, A16 series, 16 poles, set connection
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1677018 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 515 (C-2-2017) |
| GTIN | 4017918129637 |
| Weight per Piece (excluding packing) | 42.550 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Note | For HC-D25 / HC-D50 housing, crimp contact CK2,5-ED (crimp contacts not included in scope of supply) |
|---|---|
| Connectors may be operated only when there is no load/voltage. | |
| Connection method | Crimp connection |
| Number of connections per position | 1 |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Number of positions | 16+PE |
| Insertion/withdrawal cycles | ≥ 500 |
| Size | D25 |
| Contact numbering | 1 - 16 |
| Conductor cross section | 0.5 mm² ... 4 mm² (applies to stranded conductors) |
| Connection cross section AWG | 20 ... 12 |
| Stripping length of the individual wire | 8 mm |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
|---|
Material data
| Contact material | Copper alloy |
|---|---|
| Contact surface material | Ag (alternatively Au) |
| Contact carrier material | PA |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| Constructional and testing regulations | DIN VDE 0627/86 |
| DIN VDE 0110/02.79 | |
| DIN VDE 0110-1/04.97 | |
| IEC 60664-1, DIN IEC 60512 | |
| IEC 60352 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
