HC-A 10-EBUC 1676983 PHOENIX CONTACT Contact insert

HC-A 10-EBUC

1676983

PHOENIX CONTACT

1 Pcs.

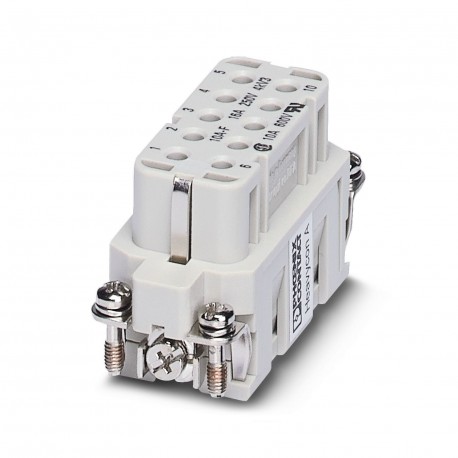

Contact insert HEAVYCON Female Insert, A10 Series, 10 Poles, Crimped Connection HEAVYCON female insert, A10 series, 10-pos., crimp connection

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Generalfor flexible conductors with or without ferrules
GeneralConnectors may be operated only when there is no load/voltage.
GeneralFor HEAVYCON housing of type D15
Mounting
Assembly noteTo ensure correct use, installation in housing with IP54 protection or better is required
Product properties
Product typeContact insert with a fixed no. of positions
SeriesHC-A
TypeD15
Number of positions10
Connection profile10+PE
Contact numbering1 - 10
Number of connections per position1
Contact material typeturned
Data management status
Article revision04
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Dimensions
Dimensional drawingimikkiepzp.jpg
Width23 mm
Height30 mm
Length56.5 mm
Drill hole distance, horizontal49.5 mm
Drill hole distance, vertical16 mm
Mechanical characteristics
Contact diameter2.5 mm
Connection data
Connection technology
Connection technologyCrimp connection
Number of connections per position1
Connection in acc. with standardIEC / EN
Conductor connection
Conductor cross section0.5 mm² ... 4 mm²
Connection cross section AWG20 ... 12
Tightening torque0.7 Nm ... 1 Nm (PE connection)
0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
Stripping length of the individual wire8 mm
Electrical properties
Rated voltage (III/3)250 V
Rated surge voltage4 kV
Rated current16 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 500
Material specifications
Flammability rating according to UL 94V0
Contact materialCopper alloy
Contact surface materialAg (alternatively Au)
Contact carrier materialPA
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 125 °C (including heating up of contacts)
Standards and regulations
Constructional and testing regulationsDIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352
TestsDIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
