View larger
Images are for illustrative purposes only. Please refer to data sheet for details

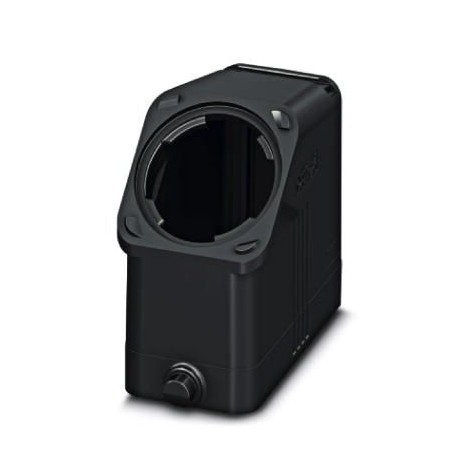

HC-EVO-B16-HHFS-PLBK 1407642 PHOENIX CONTACT Housing
HC-EVO-B16-HHFS-PLBK
1407642
PHOENIX CONTACT
1 Pcs.
Housing
B16 aerial housing, for longitudinal flange, material: PA, cable outlets: 1, straight/side, height: 78 mm, cable gland: without, Standard
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1407642 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 608 (C-2-2017) |
| GTIN | 4046356777063 |
| Weight per Piece (excluding packing) | 101.000 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection (IP) | IP66 |
|---|---|
| Degree of protection (NEMA) | 12 (UL 50e) |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K, HV06-I-PR, HV 6-E...C |
|---|---|
| Size | B16 |
| Housing type | Sleeve housing |
| Color | black |
| Locking type | for single locking latch |
| No. of cable outlets | 1 |
| Cable outlet | straight |
| lateral | |
| Screw connection | none |
| Housing material | PA |
| Flammability rating according to UL 94 | V0 |
| Connection | The sleeve base housing must be supplemented with the EVO screw connection. The EVO screw connection is available in four sizes. It facilitates the creation of a straight or a side cable outlet. The EVO screw connection is mounted with the aid of, for example, a pipe wrench |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
