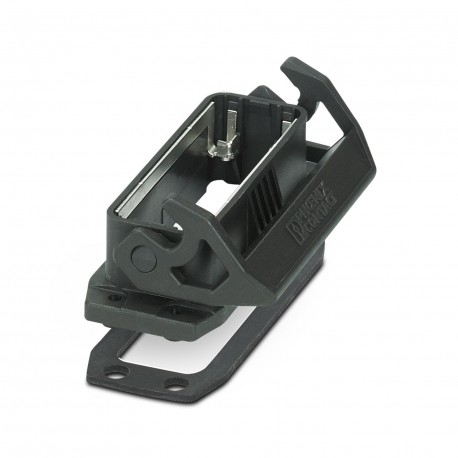

HC-EVO-D25-BWS-PLR-BK 1411344 PHOENIX CONTACT Housing
HC-EVO-D25-BWS-PLR-BK
1411344
PHOENIX CONTACT
1 Pcs.
Housing
Recessed housing D25, with longitudinal flange, material: PA, height: 26 mm, cable gland: without, protective cover: no, Standard, with flat gasket
Panel mounting base D25, with single locking latch, material: PA 6.6-FR, height: 26 mm, cable gland: none, protective cover: no, Standard, with flat gasket
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | For contact inserts HC-D25, A16 |
Product properties
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Product family | HC-EVO-D |
| Application | Standard |
| Type | D25 |
| Protective cover | no |
| Shielded | no |
| Pg screw connection | none |
| Data management status | |
| Article revision | 01 |
Dimensions
| Dimensional drawing |  |
| Width | 39 mm |
| Height | 26 mm |
| Length | 97 mm |
| Drill hole distance, horizontal | 86 mm |
| Drill hole distance, vertical | 17.5 mm |
| Hole diameter | 3.3 mm |
| Installation dimensions | |
| Width of the assembly cutout | 24 mm |
| Length of the assembly cutout | 74 mm |
Material specifications
| Flammability rating according to UL 94 | V0 (Housing) |
| V0 (Interlock) | |
| Seal material | NBR |
| Housing material | PA 6.6-FR |
| Locking latch material | PA |
Mechanical properties
| Mechanical data | |
| Locking type | Latch |
Connection data
| Tightening torque | 0.5 Nm ... 0.8 Nm (For M3 mounting screws on the panel-mount base) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP66 |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 39 mm |
| Height (EF000040) | 26 mm |
| Depth (EF000049) | 97 mm |
| Type of housing (EF006980) | Housing extension |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Housing colour (EF000136) | Black |
| Position cable feed (EF008218) | Other |
| Position of the shackle (EF008459) | Cover |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | None |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Type of locking (EF000208) | Single locking lever |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | No |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK08 |
