View larger
Images are for illustrative purposes only. Please refer to data sheet for details

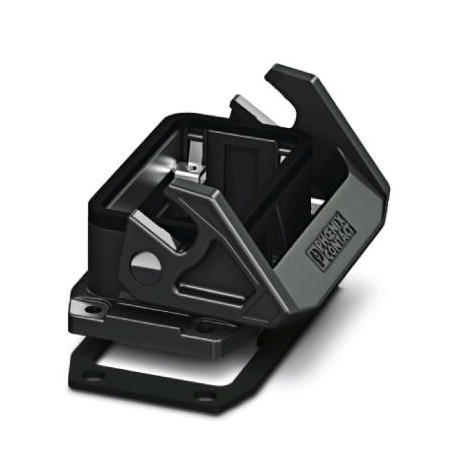

HC-EVO-B10-BWS-PLRBK 1407632 PHOENIX CONTACT Housing
HC-EVO-B10-BWS-PLRBK
1407632
PHOENIX CONTACT
1 Pcs.
Housing
HEAVYCON EVO recessed housing, plastic, B10, with longitudinal lock, height 30.5 mm, with flat joint
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1407632 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 594 (C-2-2017) |
| GTIN | 4046356776943 |
| Weight per Piece (excluding packing) | 75.600 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
Dimensions
| Height | 30.5 mm |
|---|---|
| Width | 53 mm |
| Length | 93.5 mm |
| Length of the assembly cutout | 65 mm |
| Width of the assembly cutout | 35 mm |
Ambient conditions
| Degree of protection (IP) | IP66 |
|---|---|
| Degree of protection (NEMA) | 12 (UL 50e) |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B10, BB18, DD42, M, K8/24, HV03-I-PT, HC- 3-E...C |
|---|---|
| Size | B10 |
| Housing type | Panel mounting base |
| Color | black |
| Locking type | with single locking latch |
| Torque | 0.5 Nm ... 1.7 Nm (Fixing screws for panel mounting base) |
| Screw connection | none |
| Housing material | PA |
| Seal material | NBR |
| Material lock | PA |
| Flammability rating according to UL 94 | V0 |
| Assembly instructions | Not for D series terminal adapters |
| Connection | Not for HC-B 24-ADP-B..... adapter plates |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440202eCl@ss 8.027440202eCl@ss 9.027440202
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 53 mm |
| Height (EF000040) | 30.5 mm |
| Depth (EF000049) | 93.5 mm |
| Type of housing (EF006980) | Housing extension |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Housing colour (EF000136) | Black |
| Position cable feed (EF008218) | Other |
| Position of the shackle (EF008459) | Cover |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | None |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Type of locking (EF000208) | Single locking lever |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | No |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK08 |
