View larger
Images are for illustrative purposes only. Please refer to data sheet for details

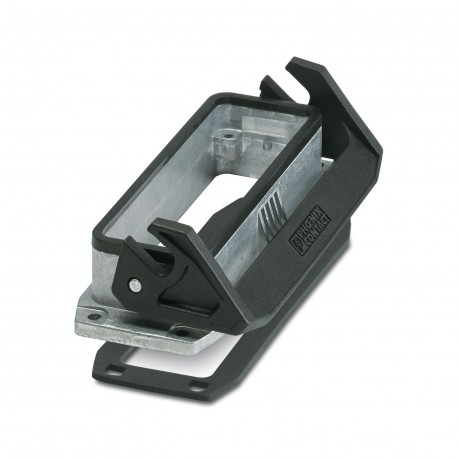

HC-STA-B24-BWS-ELC-AL 1411329 PHOENIX CONTACT Housing
HC-STA-B24-BWS-ELC-AL
1411329
PHOENIX CONTACT
1 Pcs.
Housing
HEAVYCON B24 recessed box, with longitudinal flange, with flat joint, seawater resistant aluminum, conductive profiled joint
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1411329 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 623 (C-2-2017) |
| GTIN | 4046356927499 |
| Weight per Piece (excluding packing) | 135.700 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Dimensions
| Height | 30.5 mm |
|---|---|
| Width | 53 mm |
| Length | 140.5 mm |
| Length of the assembly cutout | 113 mm |
| Width of the assembly cutout | 35 mm |
Ambient conditions
| Degree of protection (IP) | IP66 |
|---|---|
| IP67 | |
| Degree of protection (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B24, BB46, D64, DD108, M |
|---|---|
| Size | B24 |
| Housing type | Panel mounting base |
| Color | gray aluminum |
| Locking type | with single locking latch |
| Torque | 1.5 Nm ... 2 Nm (Mounting screw) |
| Screw connection | none |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Seal material | NBR, conductive |
| Material lock | Polyamide |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
