View larger
Images are for illustrative purposes only. Please refer to data sheet for details

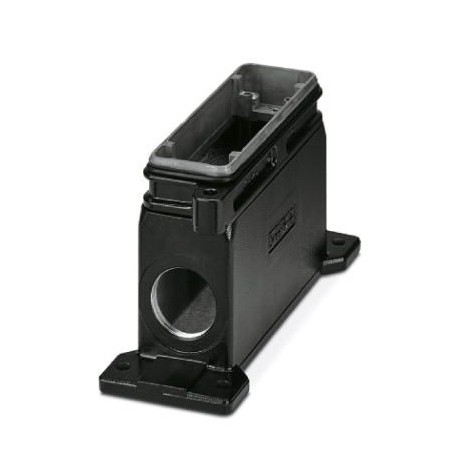

HC-HPR-B24-SHFH-2SSM40-EMR-BK 1411063 PHOENIX CONTACT Housing
HC-HPR-B24-SHFH-2SSM40-EMR-BK
1411063
PHOENIX CONTACT
1 Pcs.
Housing
HEAVYCON B24 socket box, for screw locking, HPR series, with 2x M40 tubing, for high EMC and environmental requirements
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1411063 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 629 (C-4-2015) |
| GTIN | 4046356921695 |
| Weight per Piece (excluding packing) | 1,129.000 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection of housing (IP) | IP66 |
|---|---|
| IP68 (0.5 bar / 24 h) | |
| IP69K (ISO 20653:2013-02) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B24, BB46, BBB64, D64, DD108, M |
|---|---|
| Size | B24 |
| Housing type | Box mounting bases |
| Color | black |
| Locking type | For screw locking |
| No. of cable outlets | 2 |
| Cable outlet | lateral |
| Screw connection | none |
| Type of the screw connection | 2x M40 |
| Protective cover | no |
| Housing material | Aluminum die-cast |
| Housing surface material | Powder-coated, black |
| Seal material | NBR |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 80 mm |
| Height (EF000040) | 111 mm |
| Depth (EF000049) | 216 mm |
| Type of housing (EF006980) | Socket case |
| Housing material (EF001596) | Aluminium |
| Coating housing (EF001601) | Powder coated |
| Housing colour (EF000136) | Black |
| Position cable feed (EF008218) | Sideways |
| Position of the shackle (EF008459) | None |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Metric |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Number of conduit inlets (EF000437) | 2 |
| Type of locking (EF000208) | Screw |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | Yes |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK09 |
