View larger
Images are for illustrative purposes only. Please refer to data sheet for details

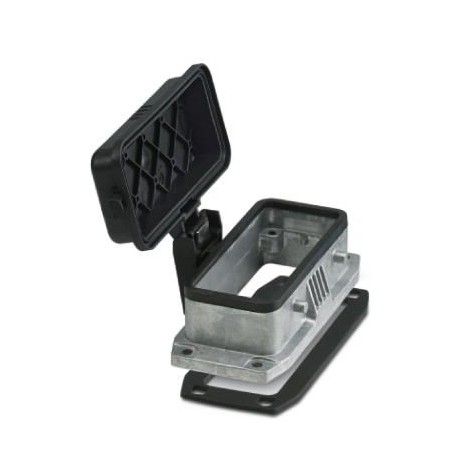

HC-STA-B16-BFDC-ELC-AL 1411328 PHOENIX CONTACT Housing
HC-STA-B16-BFDC-ELC-AL
1411328
PHOENIX CONTACT
1 Pcs.
Housing
HEAVYCON B16 recessed box, for cross flange, with plastic protective cover, with flat joint, seawater resistant aluminum, conductive profiled joint.
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1411328 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 617 (C-2-2017) |
| GTIN | 4046356927482 |
| Weight per Piece (excluding packing) | 129.000 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Dimensions
| Height | 30.5 mm |
|---|---|
| Width | 53 mm |
| Length | 114 mm |
| Length of the assembly cutout | 86 mm |
| Width of the assembly cutout | 35 mm |
Ambient conditions
| Degree of protection (IP) | IP66 (when plugged in) |
|---|---|
| IP67 (when plugged in) | |
| IP54 (with closed protective cover) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B16, BB32, D40, DD72, HS6, M, K |
|---|---|
| Size | B16 |
| Housing type | Panel mounting base |
| Color | gray aluminum |
| Locking type | for double locking latch |
| Torque | 1.5 Nm ... 2 Nm (Mounting screw) |
| Screw connection | none |
| Protective cover | yes |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Seal material | NBR, conductive |
| Material, protective cover | PA |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 53 mm |
| Height (EF000040) | 30.5 mm |
| Depth (EF000049) | 114 mm |
| Type of housing (EF006980) | Housing extension |
| Housing material (EF001596) | Aluminium |
| Coating housing (EF001601) | Uncoated |
| Housing colour (EF000136) | Other |
| Position cable feed (EF008218) | Other |
| Position of the shackle (EF008459) | None |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | None |
| With hinged lid (EF000117) | Yes |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Type of locking (EF000208) | Double locking levers |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | Yes |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK09 |
