View larger
Images are for illustrative purposes only. Please refer to data sheet for details

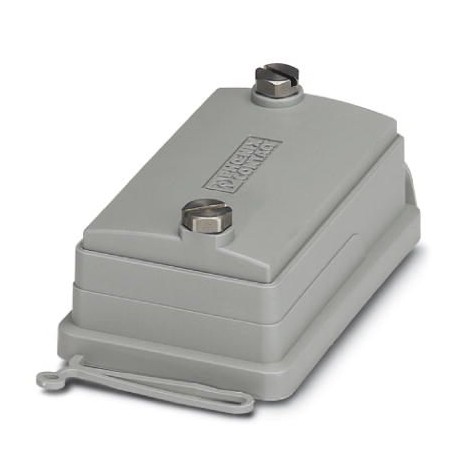

HC-B 6-TMS-SD-IP66 1411494 PHOENIX CONTACT Protective covers
HC-B 6-TMS-SD-IP66
1411494
PHOENIX CONTACT
10 Pcs.
Protective covers
B6 HEAVYCON ADVANCE IP66 protective cover, for recessed side, with screw lock, with retaining cord, retaining cord ring diameter: 3 mm
Connectors > Cap for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1411494 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 586 (C-2-2017) |
| GTIN | 4046356918688 |
| Weight per Piece (excluding packing) | 45.680 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
General
| Size | B6 |
|---|---|
| Type | HC-ADVANCE protective cover |
| Housing type | Protective cover |
| Color | gray |
| Locking type | Screw locking |
| Torque | 3 Nm (Locking screw) |
| Seal material | NBR |
| Material lock | Stainless steel |
| Material of locking screw | Stainless steel |
| Material, protective cover | PA |
| Flammability rating according to UL 94 | V0 |
| Assembly instructions | Tightening torque of locking screw: 3 Nm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141210eCl@ss 4.127141210eCl@ss 5.027149110eCl@ss 5.127149100eCl@ss 6.027261200eCl@ss 7.027440208eCl@ss 8.027440208eCl@ss 9.027440208
| Feature Name | Feature Value |
|---|---|
| Type of locking (EF000208) | Other |
| With sealing (EF005610) | Yes |
| With captivity element (EF012222) | Yes |
| Colour (EF000007) | Grey |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 100 °C |
| Degree of protection (IP), mounted (EF007466) | IP66 |
