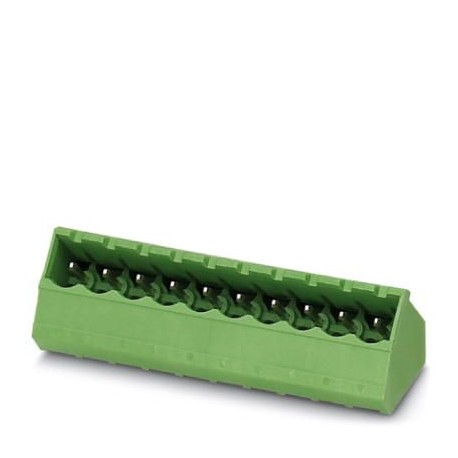

SMSTBA 2,5/ 3-G 1769816 PHOENIX CONTACT Feed-through header

SMSTBA 2,5/ 3-G

1769816

PHOENIX CONTACT

100 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, family of articles: SMSTBA 2.5/.. -G, pitch: 5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1769816
Packing unit100 pc
Minimum order quantity100 pc
Catalog pagePage 319 (C-1-2013)
GTIN4017918035037
Weight per Piece (excluding packing)2.020 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]16.5 mm
Width17 mm
Pitch5 mm
Dimension a10 mm
Width [ w ]17 mm
Height [ h ]18.3 mm
Height14.8 mm
Length of the solder pin3.5 mm
Pin dimensions1 x 1 mm
Length16.5 mm

General

Range of articlesSMSTBA 2,5/..-G
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Maximum load current12 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorgreen
Number of positions3

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
