View larger
Images are for illustrative purposes only. Please refer to data sheet for details

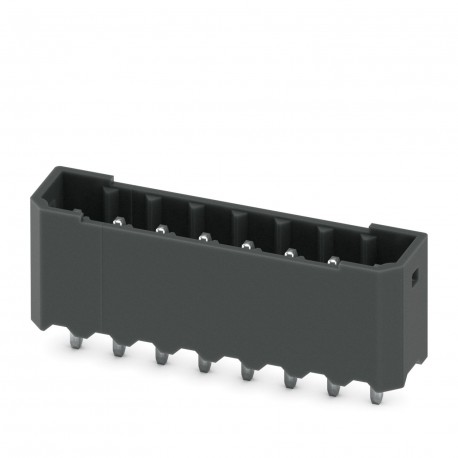

PTSM 0,5/ 8-HV-2,5-THR R44 1778612 PHOENIX CONTACT Printed-circuit board connector
PTSM 0,5/ 8-HV-2,5-THR R44
1778612
PHOENIX CONTACT
330 Pcs.
Printed-circuit board connector
Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 8, number of rows: 1, number of poles: 8, number of connections: 8, family of articles: PTSM 0.5/.. -HV-THR, pitch: 2.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON PTSM, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: 44 mm wide strap
PCB header, nominal cross-section: 0.5 mm2, colour: black, nominal current: 6 A, reference voltage (III/2): 160 V, contact area: Sn, contact type: Male, number of potentials: 8, number of rows: 1, number of poles: 8, number of connections: 8, range of articles: PTSM 0.5/.. -HV-THR, pitch: 2.5 mm, mounting: THR welding / Wave welding, spindle plane: Linear broaching, spindle length [P]: 2 mm, number of pins per potential: 1, Plug-in system: COMBICON PTSM, Orientation of the plug-in pattern: Standard, Locking: without, Fastening type: without, Packaging type: Webbing in width of 44 mm
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1778612 |
|---|---|
| Packing unit | 330 pc |
| Minimum order quantity | 330 pc |
| Catalog page | Page 59 (C-1-2013) |
| GTIN | 4046356529785 |
| Weight per Piece (excluding packing) | 2.480 g |
| Custom tariff number | 85366930 |
| Country of origin | IN (India) |
Dimensions
| Length [ l ] | 5 mm |
|---|---|
| Width | 21.7 mm |
| Pitch | 2.5 mm |
| Dimension a | 17.5 mm |
| Width [ w ] | 21.7 mm |
| Height [ h ] | 9.5 mm |
| Height | 7.5 mm |
| Length of the solder pin | 2 mm |
| Pin dimensions | 0.6 x 0.6 mm |
| Pin spacing | 2.50 mm |
| Length | 5 mm |
General
| Range of articles | PTSM 0,5/..-HV-THR |
|---|---|
| Insulating material group | IIIa |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | 50 V |
| Rated voltage (III/2) | 160 V |
| Rated voltage (II/2) | 160 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 6 A |
| Maximum load current | 6 A |
| Insulating material | LCP |
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Number of positions | 8 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| UL | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440402eCl@ss 8.027440402eCl@ss 9.027440402
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 8 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 2.5 mm |
| Modular spacing connections (EF006827) | 2.5 mm |
| Rated current In (EF008250) | 6 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.1 mm |
| Length pin (EF006825) | 2 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Other |
