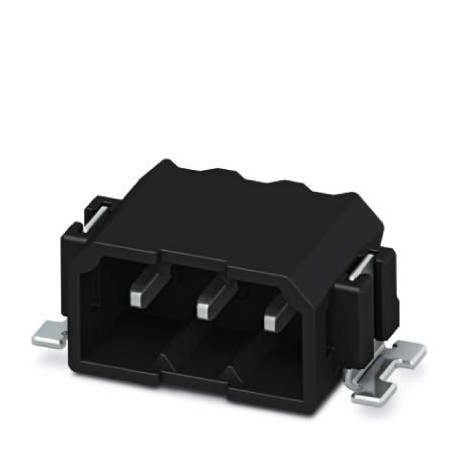

PHOENIX CONTACT PTSM 0,5/ 7-HH-2,5-SMD R44 PTSM 0,5/ 7-HH-2,5-SMD R44 1778816 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTSM 0,5/ 7-HH-2,5-SMD R44 1778816 PHOENIX CONTACT Feed-through header

PTSM 0,5/ 7-HH-2,5-SMD R44

1778816

PHOENIX CONTACT

600 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 7, number of rows: 1, number of poles: 7, number of connections: 7, family of articles: PTSM 0.5/.. -HH-SMD, pitch: 2.5 mm, mounting: SMD soldering, pin arrangement: Linear pin arrangement, number of solder pins per potential: 1, plug-in system: COMBICON PTSM, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: 44 mm wide strap, Item with twist protection pins

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1778816
Packing unit600 pc
Minimum order quantity600 pc
NoteMade to Order (non-returnable)
Catalog pagePage 57 (CC-2011)
GTIN4046356530026
Weight per Piece (excluding packing)1.890 g
Custom tariff number85366930
Country of originIN (India)

Dimensions

Length [ l ]7.5 mm
Width21.3 mm
Pitch2.5 mm
Dimension a15 mm
Width [ w ]21.3 mm
Height [ h ]5 mm
Height5 mm
Pin spacing2.50 mm
Length7.5 mm

General

Range of articlesPTSM 0,5/..-HH-SMD
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)50 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Maximum load current6 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions7

Standards and Regulations

Connection in acc. with standardEN-VDE
UL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1778816 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 7
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 2.5 mm
Modular spacing connections (EF006827) 2.5 mm
Rated current In (EF008250) 6 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other
