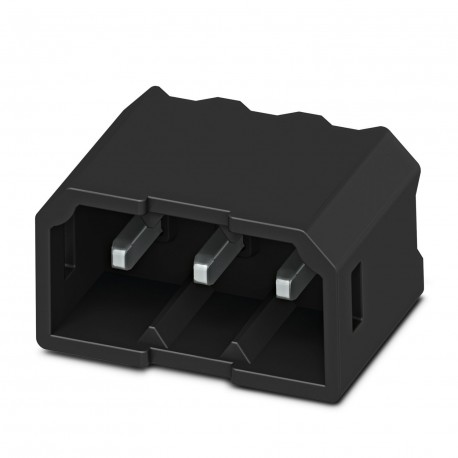

PHOENIX CONTACT PTSM 0,5/ 5-HH-2,5-THR R32 PTSM 0,5/ 5-HH-2,5-THR R32 1778654 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTSM 0,5/ 5-HH-2,5-THR R32 1778654 PHOENIX CONTACT Feed-through header

PTSM 0,5/ 5-HH-2,5-THR R32

1778654

PHOENIX CONTACT

500 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, family of articles: PTSM 0.5/.. -HH-THR, pitch: 2.5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.1 mm, number of solder pins per potential: 1, plug-in system: COMBICON PTSM, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: 32 mm wide strap

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1778654
Packing unit500 pc
Minimum order quantity500 pc
Catalog pagePage 59 (C-1-2013)
GTIN4046356529839
Weight per Piece (excluding packing)1.530 g
Custom tariff number85366930
Country of originIN (India)

Dimensions

Length [ l ]7.5 mm
Width14.2 mm
Pitch2.5 mm
Dimension a10 mm
Width [ w ]14.2 mm
Height [ h ]7 mm
Height5 mm
Length of the solder pin2 mm
Pin dimensions0.6 x 0.6 mm
Pin spacing2.50 mm
Length7.5 mm

General

Range of articlesPTSM 0,5/..-HH-THR
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)50 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Maximum load current6 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions5

Standards and Regulations

Connection in acc. with standardEN-VDE
UL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1778654 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 5
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 2.5 mm
Modular spacing connections (EF006827) 2.5 mm
Rated current In (EF008250) 6 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.1 mm
Length pin (EF006825) 2.1 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other
