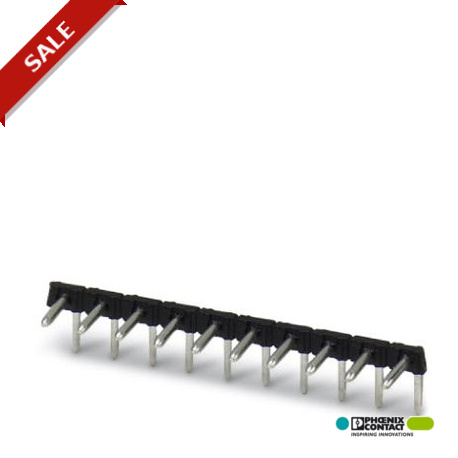

PHOENIX CONTACT PST 1,3/ 5-H-5,0 PST 1,3/ 5-H-5,0 1705494 PHOENIX CONTACT Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PST 1,3/ 5-H-5,0 1705494 PHOENIX CONTACT Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number..

PST 1,3/ 5-H-5,0

1705494

PHOENIX CONTACT

100 Pcs.

Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 5, Pitch: 5 mm, Color: black, Contact surface: Tin, Mounting: Soldering, The maximum current depends on the plug used. The lower of the two current values apply for plug and pin strip. The pin strip is made of highly temperature resistant plastic and is thus suitable for the reflow process. Male connector, nominal section: 1.5 mm², color: black, nominal current: 12 A (Depending on the connector used), nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, article family: PST 1.3/.. -H, pitch: 5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 6.8 mm, plug-in system: COMBICON PST 1.3, locking: without, fixing type: without, packaging type: boxed, The maximum current depends on the connector used. Of the two current values, the lower value for the connector and the male connector is decisive. The plug is made of high-temperature resistant plastic, making it suitable for the reflow soldering process.

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Dimensions

Length12.5 mm
Pitch5.00 mm
Dimension a20 mm
Constructional height2.8 mm
Pin dimensions1,3 mm
Hole diameter1.5 mm

General

Range of articlesPST 1,3/..-H
Insulating material groupIIIa
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A (depends on the plug used)
Maximum load current12 A (depends on the plug used)
Insulating materialPA
Flammability rating according to UL 94V0
Colorblack
Number of positions5

ETIM for 1705494 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 5
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.5 mm
Length pin (EF006825) 6.8 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
