PST 1,0/ 8-3,5 R56 1720275 PHOENIX CONTACT Pin strip

PST 1,0/ 8-3,5 R56

1720275

PHOENIX CONTACT

250 Pcs.

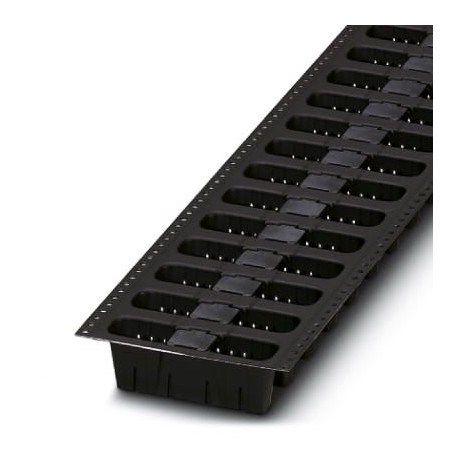

Pin strip Male connector, nominal section: 0.5 mm², color: black, nominal current: 8 A (Depending on the connector used), nominal voltage (III/2): 250 V, contact surface: Tin, contact type: Male, number of potentials: 8, number of rows: 1, number of poles: 8, number of connections: 8, family of articles: PST 1.0/.. -V, pitch: 3.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 3.8 mm, plug-in system: COMBICON PST 1.0, locking: without, fixing type: without, packaging type: 56 mm wide strap, Maximum current depends on the connector used. Of the two current values, the lower value for the connector and the male connector is decisive. The plug is made of high-temperature resistant plastic, making it suitable for the reflow soldering process.

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1720275
Packing unit250 pc
Minimum order quantity250 pc
Catalog pagePage 433 (C-1-2013)
GTIN4046356115889
Weight per Piece (excluding packing)3.160 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]2.8 mm
Width27.6 mm
Pitch3.5 mm
Dimension a24.5 mm
Width [ w ]27.6 mm
Height [ h ]12.7 mm
Height9.2 mm
Length of the solder pin3.5 mm
Pin dimensionsø 1 mm
Pin spacing3.50 mm
Length2.8 mm

General

Range of articlesPST 1,0/..-V
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)250 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A (depends on the plug used)
Maximum load current8 A (depends on the plug used)
Insulating materialPA
Flammability rating according to UL 94V0
Colorblack
Number of positions8

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
