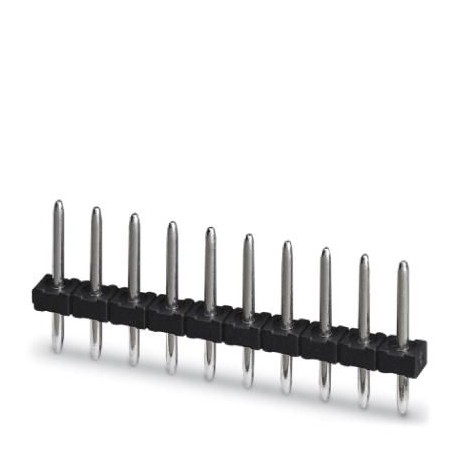

PHOENIX CONTACT PST 1,0/13-3,5 PST 1,0/13-3,5 1945203 PHOENIX CONTACT Pin strip View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PST 1,0/13-3,5 1945203 PHOENIX CONTACT Pin strip

PST 1,0/13-3,5

1945203

PHOENIX CONTACT

50 Pcs.

Pin strip Male connector, nominal section: 0.5 mm², color: black, nominal current: 8 A (Depending on the connector used), nominal voltage (III/2): 250 V, contact surface: Tin, contact type: Male, number of potentials: 13, number of rows: 1, number of poles: 13, number of connections: 13, family of articles: PST 1.0/.. -V, pitch: 3.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 3.8 mm, plug-in system: COMBICON PST 1.0, locking: without, fixing type: without, packaging type: boxed, The maximum current depends on the connector used. Of the two current values, the lower value for the connector and the male connector is decisive. The plug is made of high-temperature resistant plastic, making it suitable for the reflow soldering process.

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1945203
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 432 (C-1-2013)
GTIN4017918883379
Weight per Piece (excluding packing)1.360 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]2.8 mm
Width45.5 mm
Pitch3.5 mm
Dimension a42 mm
Width [ w ]45.5 mm
Height [ h ]13 mm
Height9.2 mm
Length of the solder pin3.8 mm
Pin dimensionsø 1 mm
Length2.8 mm

General

Range of articlesPST 1,0/..-V
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)250 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A (depends on the plug used)
Maximum load current8 A (depends on the plug used)
Insulating materialPA
Flammability rating according to UL 94V0
Colorblack
Number of positions13

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
