PHOENIX CONTACT PST 1,0/10-3,5 R56 PST 1,0/10-3,5 R56 1720288 PHOENIX CONTACT Pin strip View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PST 1,0/10-3,5 R56 1720288 PHOENIX CONTACT Pin strip

PST 1,0/10-3,5 R56

1720288

PHOENIX CONTACT

250 Pcs.

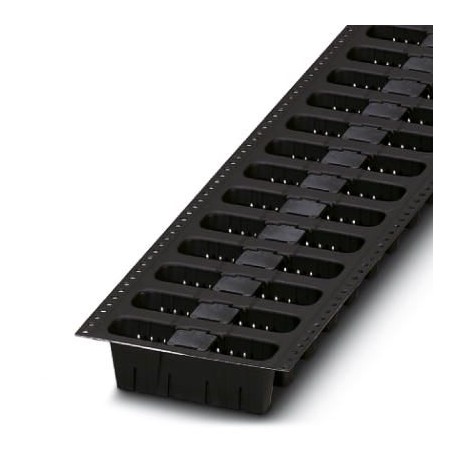

Pin strip Male connector, nominal section: 0.5 mm², color: black, nominal current: 8 A (Depending on the connector used), nominal voltage (III/2): 250 V, contact surface: Tin, contact type: Male, number of potentials: 10, number of rows: 1, number of poles: 10, number of connections: 10, article family: PST 1.0/.. -V, pitch: 3.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 3.8 mm, plug-in system: COMBICON PST 1.0, locking: without, fixing type: without, packaging type: 56 mm wide strap, Maximum current depends on the connector used. Of the two current values, the lower value for the connector and the male connector is decisive. The plug is made of high-temperature resistant plastic, making it suitable for the reflow soldering process.

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1720288
Packing unit250 pc
Minimum order quantity250 pc
NoteMade to Order (non-returnable)
Catalog pagePage 433 (C-1-2013)
GTIN4046356115896
Weight per Piece (excluding packing)3.510 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]2.8 mm
Width34.8 mm
Pitch3.5 mm
Dimension a31.5 mm
Width [ w ]34.8 mm
Height [ h ]12.7 mm
Height9.2 mm
Length of the solder pin3.5 mm
Pin dimensionsø 1 mm
Pin spacing3.50 mm
Length2.8 mm

General

Range of articlesPST 1,0/..-V
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)250 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A (depends on the plug used)
Maximum load current8 A (depends on the plug used)
Insulating materialPA
Flammability rating according to UL 94V0
Colorblack
Number of positions10

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1720288 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 10
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 250 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 3.8 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
