PHOENIX CONTACT PCV 6-16/ 6-G1-10,16 PCV 6-16/ 6-G1-10,16 1998823 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PCV 6-16/ 6-G1-10,16 1998823 PHOENIX CONTACT Feed-through header

PCV 6-16/ 6-G1-10,16

1998823

PHOENIX CONTACT

50 Pcs.

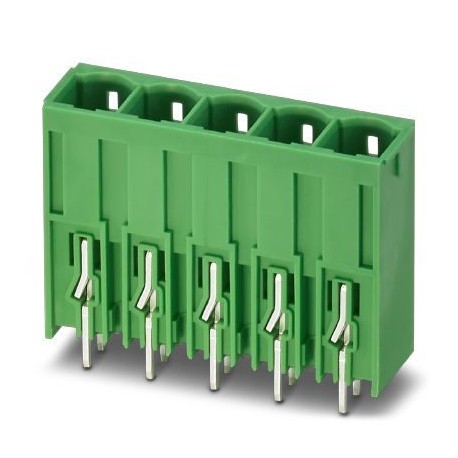

Feed-through header Printed circuit board base housing, nominal section: 16 mm², color: green, nominal current: 76 A (41 A in combination with PC 6 connector), nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Male, number of potentials: 6, number of rows: 1, number of poles: 6, number of connections: 6, family of articles: PCV 6-16/.. -G1, pitch: 10.16 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 16, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1998823
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 568 (C-1-2013)
GTIN4046356038324
Weight per Piece (excluding packing)24.810 g
Custom tariff number85366930
Country of originPL (Poland)

Dimensions

Length [ l ]13.4 mm
Width64 mm
Pitch10.16 mm
Dimension a50.8 mm
Width [ w ]64 mm
Height [ h ]38 mm
Height34 mm
Length of the solder pin4 mm
Pin dimensions1 x 1.2 mm
Pin spacing1.16 mm
Length13.4 mm

General

Range of articlesPCV 6-16/..-G1
Insulating material groupI
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)8 kV
Rated voltage (III/3)1000 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN76 A (41 A in combination with PC 6 plug)
Maximum load current76 A (41 A in combination with PC 6 plug)
Insulating materialPA
Flammability rating according to UL 94V0
Colorgreen
Number of positions6

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
