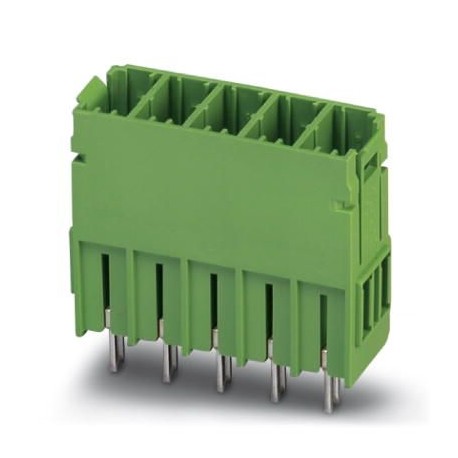

PHOENIX CONTACT PCV 5/ 2-G-7,62 PCV 5/ 2-G-7,62 1720576 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PCV 5/ 2-G-7,62 1720576 PHOENIX CONTACT Printed-circuit board connector

PCV 5/ 2-G-7,62

1720576

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 6 mm², color: green, nominal current: 41 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Male, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: PCV 5/.. -G, pitch: 7.62 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 5 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1720576
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 538 (C-1-2013)
GTIN4046356113908
Weight per Piece (excluding packing)4.200 g
Custom tariff number85366930
Country of originPL (Poland)

Item properties

Brief article descriptionFeed-through header
Plug-in systemPOWER COMBICON 5
Type of contactMale connector
Range of articlesPCV 5/..-G
Pitch7.62 mm
Number of positions2
Mounting typeWave soldering
Pin layoutLinear pinning
Lockingwithout
Number of levels1
Number of connections2
Number of potentials2

Electrical parameters

Rated current41 A
Rated insulation voltage (III/2)630 V
Rated surge voltage (III/2)6 kV

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
Length [ l ]11 mm
Width [ w ]18.04 mm
Height [ h ]34.25 mm
Pitch7.62 mm
Height (without solder pin)29.25 mm
Solder pin [P]5 mm
Pin spacing7.62 mm
Pin dimensions0.8 x 1 mm
Dimension a7.62 mm

Dimensions for PCB design

Hole diameter1.3 mm
Pin spacing7.62 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C (dependent on the derating curve)

Air clearances and creepage distances

Insulating material groupI
Rated insulation voltage (III/3)630 V
Rated insulation voltage (III/2)630 V
Rated insulation voltage (II/2)1000 V
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)6 kV
Rated surge voltage (II/2)6 kV

Mechanical tests (A)

Insertion strength per pos. approx.8 N
Withdraw strength per pos. approx.6.5 N
Polarization when inserted requirement >20 NTest passed
Contact holder in insert requirements >20 NTest passed

Durability tests (B)

SpecificationIEC 60512-5:1992-08
Contact resistance R10.4 mΩ
Insertion/withdrawal cycles50
Contact resistance R20.5 mΩ
Impulse withstand voltage at sea level7.3 kV
Power-frequency withstand voltage3.31 kV
Insulation resistance, neighboring positions>1012Ω

Climatic tests (D)

SpecificationISO 6988:1985-02
Cold stress-40 °C/2 h
Thermal stress100 °C/168 h
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Impulse withstand voltage at sea level7.3 kV
Power-frequency withstand voltage3.31 kV

Environmental and durability tests (E)

SpecificationIEC 61984:2008-10
Result, degree of protection, IP codeFinger safety with IP20 test finger

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1720576 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 2
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 7.62 mm
Modular spacing connections (EF006827) 7.62 mm
Rated current In (EF008250) 41 A
Rated voltage (EF000228) 630 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
