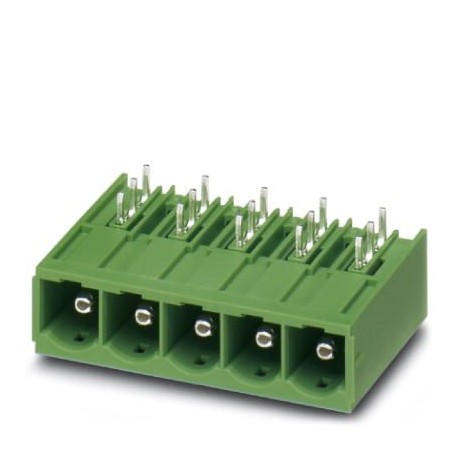

PHOENIX CONTACT PC 6-16/ 2-G1U-10,16 PC 6-16/ 2-G1U-10,16 1996236 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PC 6-16/ 2-G1U-10,16 1996236 PHOENIX CONTACT Feed-through header

PC 6-16/ 2-G1U-10,16

1996236

PHOENIX CONTACT

50 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 16 mm², color: green, nominal current: 76 A (41 A in combination with PC 6 connector), nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Male, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: PC 6-16/.. -G1U, pitch: 10.16 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 16, Plug-in face orientation: inverted, locking: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1996236
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 567 (C-1-2013)
GTIN4046356037976
Weight per Piece (excluding packing)8.250 g
Custom tariff number85366930
Country of originPL (Poland)

Item properties

Brief article descriptionFeed-through header
Plug-in systemPOWER COMBICON 16
Type of contactMale connector
Range of articlesPC 6-16/..-G1U
Pitch10.16 mm
Number of positions2
Mounting typeWave soldering
Pin layoutLinear pinning
Lockingwithout
Number of levels1
Number of connections2
Number of potentials2

Electrical parameters

Rated current76 A (41 A in combination with PC 6 plug)
Rated insulation voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsElectroplated silver
Metal surface contact area (top layer)Silver (4 - 8 µm Ag)
Metal surface contact area (middle layer)Nickel (2 - 4 µm Ni),
Metal surface soldering area (top layer)Silver (4 - 8 µm Ag)
Metal surface soldering area (middle layer)Nickel (2 - 4 µm Ni)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
Length [ l ]34 mm
Width [ w ]23.36 mm
Height [ h ]13.4 mm
Pitch10.16 mm
Height (without solder pin)17.4 mm
Solder pin [P]4 mm
Pin spacing10.16 mm
Pin dimensions0.8 x 1.2 mm
Dimension a10.16 mm

Dimensions for PCB design

Hole diameter1.7 mm
Pin spacing10.16 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

General product information

NoteIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.

Air clearances and creepage distances

Insulating material groupI
Rated insulation voltage (III/3)1000 V
Rated insulation voltage (III/2)1000 V
Rated insulation voltage (II/2)1000 V
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1996236 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 2
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 10.16 mm
Modular spacing connections (EF006827) 10.16 mm
Rated current In (EF008250) 76 A
Rated voltage (EF000228) 1000 V
Rated surge voltage (EF002993) 8 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Silver
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.7 mm
Length pin (EF006825) 4 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
