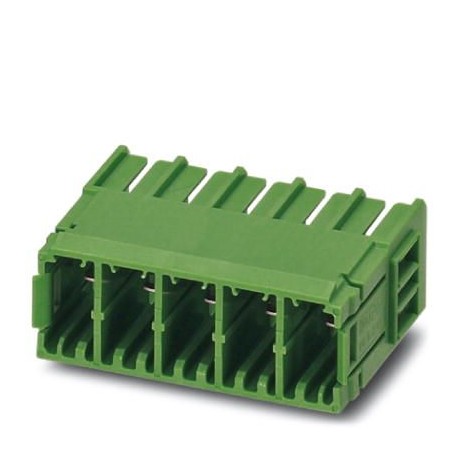

PHOENIX CONTACT PC 5/ 3-G-7,62 PC 5/ 3-G-7,62 1720479 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PC 5/ 3-G-7,62 1720479 PHOENIX CONTACT Printed-circuit board connector

PC 5/ 3-G-7,62

1720479

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Printed circuit board base case, nominal section: 6 mm², color: green, nominal current: 41 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Male, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, family of articles: PC 5/.. -G, pitch: 7.62 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 5 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1720479
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 536 (C-1-2013)
GTIN4046356111362
Weight per Piece (excluding packing)6.500 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]29.25 mm
Width25.66 mm
Pitch7.62 mm
Dimension a15.24 mm
Width [ w ]25.66 mm
Height [ h ]19.29 mm
Height14.29 mm
Length of the solder pin5 mm
Pin dimensions0.8 x 1 mm
Pin spacing7.62 mm
Length29.25 mm

General

Range of articlesPC 5/..-G
Insulating material groupI
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)6 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)630 V
Rated voltage (III/2)630 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN41 A
Maximum load current41 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorgreen
Number of positions3

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications
