> PHOENIX CONTACT > Housing (HS) > 1861028

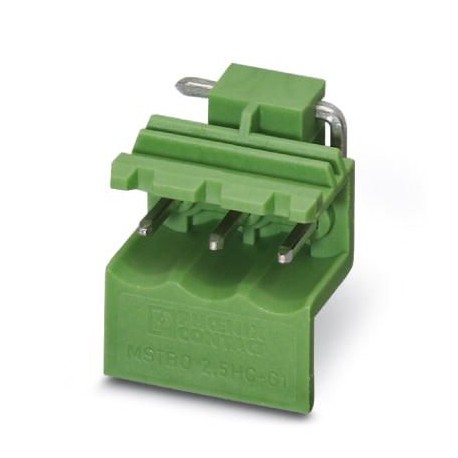

PHOENIX CONTACT MSTBO 2,5/ 3-G1L MSTBO 2,5/ 3-G1L 1861028 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MSTBO 2,5/ 3-G1L 1861028 PHOENIX CONTACT Feed-through header

MSTBO 2,5/ 3-G1L

1861028

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Feed-through header

Printed circuit board base case, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of rows: 1, number of poles: 3, family of articles: MSTBO 2.5/.. -G1L, pitch: 5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, lock: without, packaging type: boxed packed, Item with side pin output on the left

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
