PHOENIX CONTACT MSTBA 2,5 HC/ 2-G MSTBA 2,5 HC/ 2-G 1923759 PHOENIX CONTACT Feed-through header

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

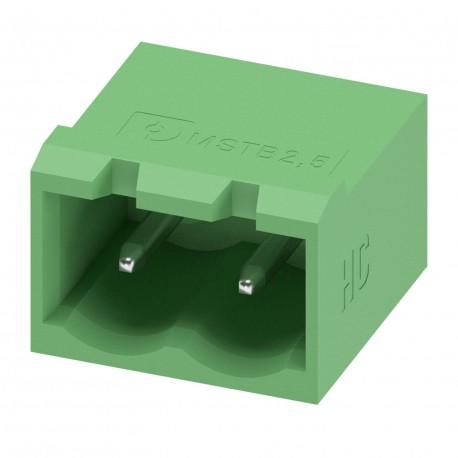

MSTBA 2,5 HC/ 2-G 1923759 PHOENIX CONTACT Feed-through header

Name: MSTBA 2,5 HC/ 2-G 1923759 PHOENIX CONTACT Feed-through header
Brand: PHOENIX CONTACT
SKU: 1923759

Reference: MSTBA 2,5 HC/ 2-G

Code: 1923759

Manufacturer: PHOENIX CONTACT

Units per package: 50 Pcs.

Description:

Feed-through header Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 16 A (see derating curve), nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: MSTBA 2.5 HC/.. -G, pitch: 5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5 HC, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed

Categories:
Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	1923759
Packing unit	50 pc
Minimum order quantity	50 pc
Catalog page	Page 496 (C-1-2013)
GTIN	4017918599942
Weight per Piece (excluding packing)	0.860 g
Custom tariff number	85366930
Country of origin	DE (Germany)

Dimensions

Length [ l ]	12 mm
Width	12 mm
Pitch	5 mm
Dimension a	5 mm
Width [ w ]	12 mm
Height [ h ]	12.1 mm
Height	8.6 mm
Length of the solder pin	3.5 mm
Pin dimensions	1 x 1 mm
Pin spacing	5.00 mm
Length	12 mm

General

Range of articles	MSTBA 2,5 HC/..-G
Insulating material group	I
Rated surge voltage (III/3)	4 kV
Rated surge voltage (III/2)	4 kV
Rated surge voltage (II/2)	4 kV
Rated voltage (III/3)	250 V
Rated voltage (III/2)	320 V
Rated voltage (II/2)	400 V
Connection in acc. with standard	EN-VDE
Nominal current I_N	16 A (see derating curve)
Maximum load current	16 A
Insulating material	PA
Flammability rating according to UL 94	V0
Color	green
Number of positions	2

General information

Note	In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
