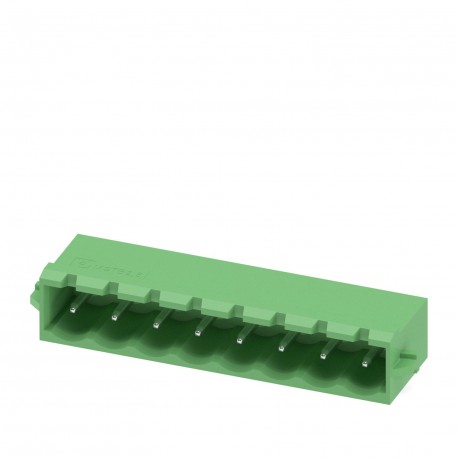

PHOENIX CONTACT MSTBA 2,5/ 8-G-5,08-RN MSTBA 2,5/ 8-G-5,08-RN 1926073 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MSTBA 2,5/ 8-G-5,08-RN 1926073 PHOENIX CONTACT Feed-through header

MSTBA 2,5/ 8-G-5,08-RN

1926073

PHOENIX CONTACT

50 Pcs.

Feed-through header Base housing printed circuit board, nominal section: 2.5 mm², colour: green, rated current: 12 A, sizing voltage (III/2): 320 V, surface contacts: Tin, contact type: Male, Number of potentials: 8, Number of rows: 1,Number of poles per row: 8, number of connections: 8, article family: MSTBA 2.5/.. -G-RN, pitch: 5.08 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, Stecksystem: CLASSIC COMBICON,Locking: Lace locking, packaging type: boxed packaging, Item with socket protrusion Printed circuit board base housing, nominal section: 2.5 mm2, color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Sn, contact connection type: Male, number of potentials: 8, number of rows: 1, number of poles: 8, number of connections: 8, family of articles: MSTBA 2.5/.. -G-RN, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: Snap-in lock, fixing type: Socket protrusion, packaging type: box-packed, Item with lace protrusion

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1926073
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 313 (C-1-2013)
GTIN4017918820121
Weight per Piece (excluding packing)3.450 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]12 mm
Width46.46 mm
Pitch5.08 mm
Dimension a35.56 mm
Width [ w ]46.46 mm
Height [ h ]12.1 mm
Height8.6 mm
Length of the solder pin3.5 mm
Pin dimensions1 x 1 mm
Pin spacing5.08 mm
Length12 mm

General

Range of articlesMSTBA 2,5/..-G-RN
Insulating material groupIIIa
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Maximum load current12 A
Insulating materialPBT
Flammability rating according to UL 94V0
Colorgreen
Number of positions8

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
