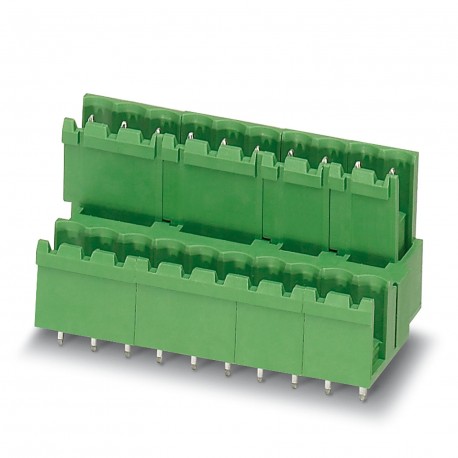

PHOENIX CONTACT MDSTBV 2,5/ 9-G MDSTBV 2,5/ 9-G 1846001 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MDSTBV 2,5/ 9-G 1846001 PHOENIX CONTACT Feed-through header

MDSTBV 2,5/ 9-G

1846001

PHOENIX CONTACT

50 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 10 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 18, number of rows: 2, number of poles: 9, number of connections: 18, article family: MDSTBV 2.5/.. -G, pitch: 5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed, Alignable! Clamping flange: Code 1836477, 1836480. In the case of a combination with MVSTB or FKCV plug-in parts, an MVSTBW (or FKCVW) connector and an MVSTBR (or FKCVR) connector must be used, respectively. A combination with TMSTBP plug-in parts is not possible! PCB base strip, nominal cross-section: 2.5 mm2, color: green, rated current: 10 A, rated voltage (III/2): 320 V, contact surface: Sn, contact type: pin, number of potentials: 18, number of rows: 2, number of poles: 9, number of connectors: 18, article family: MDSTBV 2.5/.. -G, Pitch: 5 mm, Mounting: Wave Soldering, Pin Layout: Linear Pinning, Pin Length [P]: 3.9 mm, Number of Solder Pins per Potential: 1, Plug-in System: COMBICON MSTB 2.5, Mating Face Alignment: Standard, Locking: Without, Mounting Type: Without, Packaging Type: Packed in a Box, Stackable! Mounting flange: Art. 1836477, 1836480. When combined with MVSTB or FKCV connector parts, one MVSTBW (or FKCVW) and one MVSTBR connector (or MVSTBW) connector (or MVSTBW) connector (or FKCVW) connector (

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1846001
Packing unit50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 330 (C-1-2013)
GTIN4017918183424
Weight per Piece (excluding packing)12.840 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]23.69 mm
Width47.52 mm
Pitch5 mm
Dimension a40 mm
Width [ w ]47.52 mm
Height [ h ]25.6 mm
Height22.1 mm
Length of the solder pin3.5 mm
Pin dimensions1 x 1 mm
Length23.69 mm

General

Range of articlesMDSTBV 2,5/..-G
Insulating material groupIIIa
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN10 A
Maximum load current10 A
Insulating materialPBT
Flammability rating according to UL 94V0
Colorgreen
Number of positions9

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1846001 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 18
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 10 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.9 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
