View larger
Images are for illustrative purposes only. Please refer to data sheet for details

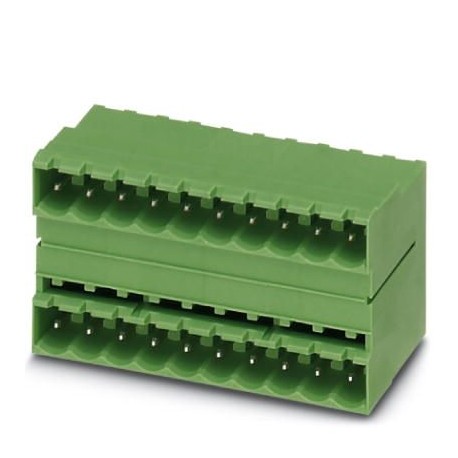

MDSTB 2,5/11-G1-5,08 1762460 PHOENIX CONTACT Feed-through header
MDSTB 2,5/11-G1-5,08
1762460
PHOENIX CONTACT
50 Pcs.
Feed-through header
Base housing printed circuit board, nominal section: 2.5 mm², color: green, rated current: 10 A, sizing voltage (III/2): 320 V, surface contacts: Tin, contact type: Male, Number of potentials: 22, Number of rows: 2,Number of poles per row: 11, number of connections: 22, article family: MDSTB 2.5/.. -G1, pitch: 5.08 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, Stecksystem: CLASSIC COMBICON,Locking: without, type of packaging: boxed packaging, In the case of a combination with MVSTB or FKCV plug-in parts, an MVSTBW connector (or FKCVW) and an MVSTBR connector (or FKCVR) should be used, respectively. A combination with TMSTBP plug-in parts is not possible!
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1762460 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 329 (C-1-2013) |
| GTIN | 4017918031060 |
| Weight per Piece (excluding packing) | 17.110 g |
| Custom tariff number | 85366930 |
| Country of origin | GR (Greece) |
Dimensions
| Length [ l ] | 22 mm |
|---|---|
| Width | 57.44 mm |
| Pitch | 5.08 mm |
| Dimension a | 50.8 mm |
| Width [ w ] | 57.44 mm |
| Height [ h ] | 32 mm |
| Height | 28.5 mm |
| Length of the solder pin | 3.5 mm |
| Pin dimensions | 1 x 1 mm |
| Length | 22 mm |
General
| Range of articles | MDSTB 2,5/..-G1 |
|---|---|
| Insulating material group | I |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 250 V |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 630 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 10 A |
| Maximum load current | 10 A |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Color | green |
| Number of positions | 11 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| CSA | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440402eCl@ss 8.027440402eCl@ss 9.027440402
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 22 |
| Number of plug-in contact rows (EF006935) | 2 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 10 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 3.3 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
