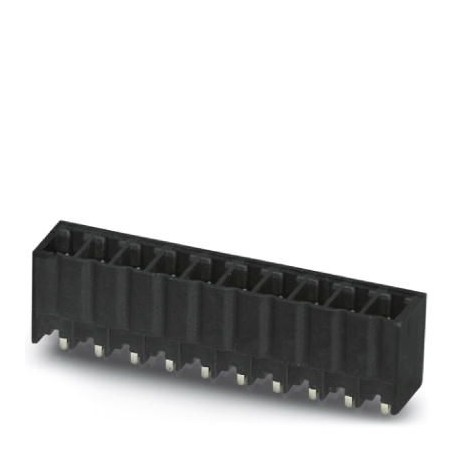

MCV 1,5/ 6-G-3,5 P14 THR 1780273 PHOENIX CONTACT Printed-circuit board connector

MCV 1,5/ 6-G-3,5 P14 THR

1780273

PHOENIX CONTACT

100 Pcs.

Printed-circuit board connector Printed circuit board base case, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 6, number of rows: 1, number of poles: 6, number of connections: 6, family of articles: MCV 1.5/.. -G-THR, pitch: 3.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 1.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed, More user information and design recommendations on Through Hole Reflow technology can be found at: Downloads

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1780273
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 215 (C-1-2013)
GTIN4046356532006
Weight per Piece (excluding packing)1.540 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]6.9 mm
Width22.4 mm
Pitch3.5 mm
Dimension a17.5 mm
Width [ w ]22.4 mm
Height [ h ]10.6 mm
Height9.2 mm
Length of the solder pin1.4 mm
Pin dimensions0.8 x 0.8 mm
Length6.9 mm

General

Range of articlesMCV 1,5/..-G-THR
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Maximum load current8 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions6

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
